AMMCO® Brake Lathe 4000B Combination Disc and Drum



  Ammco Brake Lathe 4000B MODEL #: 4000B                PART #: 904000B

  Combination Lathe for Brake Drums and Rotors, Less Adapters, 110V, 60Hz (Must be Purchased with a Bench Lathe Adapter Kit)

  Brake Lathes - Combination

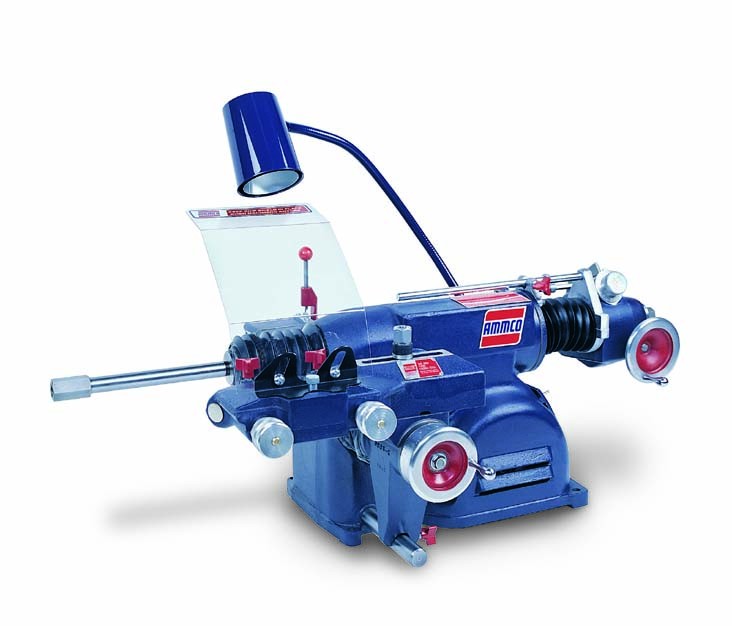

  The AMMCO® 4000B Combination Disc and Drum Brake Lathe has been professionals' first choice for more than 50 years.


Click for Larger Image




 Key Features

  • Two adjustable spindle speeds (if desired) allow for fast turning of small pieces and high-quality turning of larger pieces.
  • Two feed rates allow for quick rough-cut and finer finish-cut settings.
  • Forged alloy steel arbor – Two tapered mounting surfaces add stability and handle up to 200 lb.
  • Feed slide protection keeps travel surfaces free of dirt and chips.
  • Negative rake tool bits standard, provide lower cost of ownership.
  • Solid twin cutter tool simultaneously resurfaces both sides of rotor.
  • Full-drum support hex boring bar guarantees correct tool angle for drums.
  • Infinitely variable drum feed from 0.002" to 0.02" per revolution.
  • Quick drum-to-rotor changeover.
  • User-friendly ergonomics.
  • Supports drums or rotors up to 100 lb. using the standard 1" (25.4 mm) arbor, or up to 200 lb. using the optional 1.875" (47.63 mm) arbor.
  • Micrometer-precise depth-of-cut dials embossed in metal and calibrated in both thousandths of an inch and tenths of a millimeter; easy reset to zero.
  • Extended spindle increases drum capacity to 9.875".
  • Support drums or rotors up to 100 lb. using the standard 1" (25.4 mm) arbor, or up to 200 lb. using the optional 1.875" (47.63 mm) arbor.


And for good reason. It's simple. It's fast. It's very precise.  AMMCO combination brake lathes support rotors or drums using a standard one inch arbor. And like all AMMCO brake lathes, it almost never breaks down. It's no wonder that the 4000B has been a favorite of brake technicians everywhere since its introduction five decades ago.








Weight (lbs)

406.0000

Volume

High

Application

Car & Light Truck

Rotors

Yes

Drums

Yes

Max Rotor Diameter

14.5"

Max Rotor Face Width

3-3/4"

Standard Max Arbor Capacity

100 lbs.

Heavy Duty Max Arbor Capacity

200 lbs

Max Rotor Thickness

1.875"

Flywheel Service Capable

Yes

Spindle Bearings

Bronze Sleeve

Motor

1 HP

Tool Bits (shipped with)

Negative Rage

Double Taper Arbor

Yes

Spindle Speed

100, 200 RPM

Drum Feed Rate

.002" to .020"/REV

Max Drum Depth

6.875"

Rotor Feed Rate

.002"/.010"/REV













    Documentation:

    Operation Manual

    Product Brochure
