Bosch Brake Lathe OCL8850



  Bosch Brake Lathe OCL8850

Faster: True one pass machining
Better: World class precision machining equipment
Stronger: Best in class "Muscle Mass" construction built for life






High Performance On Car Brake Lathe





P/N: OCL8850

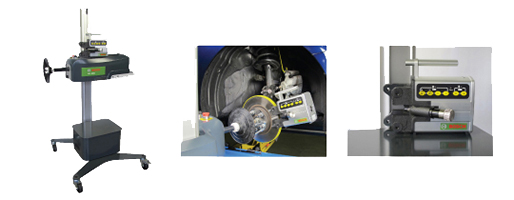

Brake Lathe OCL8850

  Brake Lathe OCL8850







Bosch Brake Lathes...Faster. Better. Stronger




Features and Benefits:

  • Standard adapters for 95% vehicle coverage in standard package
  • Two-speed settings for initial and finish cuts
  • Bidirectional drive unit, eliminating the need to "flip" the lathe
  • Design saves time, eliminates need for full disassembly of brake system
  • Compact design fits in tight wheel wells
  • Mounts to the same machined surface as caliper


OCL8850 Lathe:

  • Maximum roter thickness: 1.61" / 41 mm
  • Adjustment knob cutting depth accuracy: 0.002" / 0.05 mm
  • Feed rate: 0.24", 0.47", 1.97", 18.7" per minute  /  6 mm, 12 mm, 50 mm, 475 mm per minute
  • Voltage: 36 VDC
  • Current: Max 1.3 A
  • Power: 70W
  • Net weight: 17 lbs / 7.7 kg













OCL8850 Drive Unit

  • Working height min/max: 18" to 49" / 45cm to 125cm
  • Drive speed: 80 to 160 rpm
  • Net weight: 117 lbs / 52 kg
  • Voltage: 100-120 VAC
  • Current: Max 20A
  • Power: 0.55 kW
  • Ambient temp range: 23 to 104 degrees F / -5 to 40 degrees C


Machining Accuracy

  • Rotor run out: 79 micro inch / 0.002 mm
  • Rotor thickness variation: 79 to 197 micro inch / 0.002 to 0.005 mm
  • Rotor surface roughness: 39 to 79 micro inch / Ra 1.0 - 2.0 um
  • Noise level: 74 dB(A)*

*excluding a space correction factor of 4 dB(A), (NEN-ISO 11204 en ISO 3746)










Packaging

  • Weight (shipping gross): 191 lbs / 87 kg
  • Packaging size: 39" x 47" x 26" / 100cm x 120cm x 41cm
