Cemb ER72TD Spotter digital wheel balancer


    ez72 wheel balancer cemb
  Features and Benefits


The CEMB Digital Wheel Balancer ER72TD is made especially for busy tire shops. This new series has the latest technology in wheel balancing, “Spotter” lasers that actually pinpoints the exact location of stick-on wheel weights. This is done with little or no chance of operator error when entering dimensions (major cause of check spin errors).
Full Time Static on screen for a perfect balance. The automatic arm measures diameters up to 30", automatic entry of the dimensions with width sonar 3D. It comes fully assembled.

  • Professional digital wheel balancer especially designed for tire dealers
  • Automatic Distance & Diameter Entry with Width Sonar (3D)
  • Fully automatic Spotter Laser System for best correction possible
  • Full-time accuracy with Static unbalance always displayed on screen
  • LED to light the work space inside the rim
  • New automatic arm to measure automatically diameters up to 30"
  • Standard locking with Quick Nut
  • Electromagnetic brake for easy weight placement
  • Available 110VAC or 220VAC
  • Wide working space
  • Direct selection ounces/grams
  • Optimization program for compensation of rim and tire unbalance
  • One Button Split & Hidden Weight Program










  ER72TD


  Technical Specifications


Power Supply

110VAC or 220VAC, 50/60 Hz, 1 ph

Balancing Speed

< 100 rpm

Balancing Accuracy

< 0.1 oz (< 1 g)

Average Cycle Time

5 seconds

Rim Diameter Capacity

10" - 30" (265 - 765 mm)

Rim Width Capacity

1.5" - 20" (40 - 510 mm)

Max. Wheel Weight

165 lbs (75 kg)

Max. Tire Diameter

42" (1,067 mm)

Operating Temperature

32 - 113°F (0 - 45°C)

Shaft Size

40 mm

Gross Ship. Weight

370 lbs (168 Kg)













  Documents:

  User Manual

  Brochure

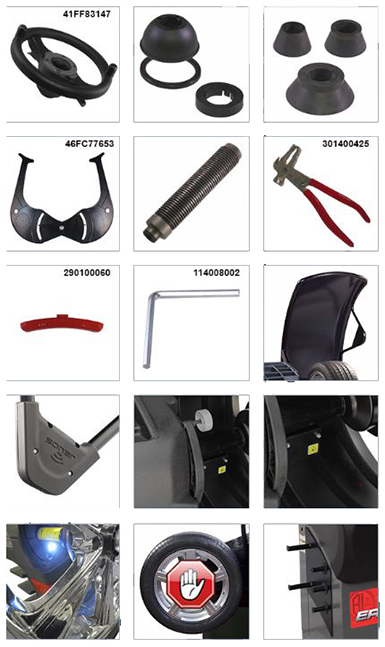

  Standard Accessories



cemb er72 standard accessores wheel balancer

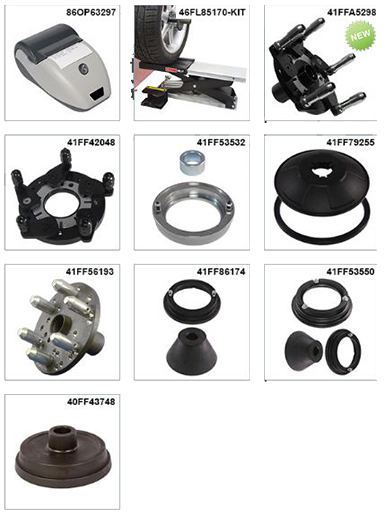

  Optional Accessories



ER72 cemb wheel balancer optional accessores
