Cemb ER75TD Spotter Video Diagnostic wheel Balancer


    ez75 wheel balancer cemb
  Features and Benefits


The CEMB Diagnostic Wheel Balancer ER75TD is made especially for busy tire shops. This new series has the latest technology in wheel balancing, “Spotter” lasers that actually pinpoints the exact location of stick-on wheel weights. This is done with little or no chance of operator error when entering dimensions (major cause of check spin errors).
Full Time Static on screen for a perfect balance, Pneumatic Locking for easy, quick and perfect clamping and Radial Runout Sonar for wheel diagnostic. The automatic arm measures diameters up to 30", automatic entry of the dimensions with width sonar 3D. It comes fully assembled.

  • Professional video diagnostic wheel balancer especially designed for tire dealers
  • Automatic Distance & Diameter Entry with Width Sonar (3D)
  • Fully automatic Spotter Laser System for best correction possible
  • Full-time accuracy with Static unbalance always displayed on screen
  • Radial Runout Sonar for wheel diagnostic
  • LED to light the work space inside the rim
  • New automatic arm to measure automatically diameters up to 30"
  • Pneumatic locking
  • Electromagnetic brake for easy weight placement
  • Optional printer
  • Available 110VAC or 220VAC
  • Wide working space
  • Optimization program for compensation of rim and tire unbalance
  • One Button Split & Hidden Weight Program













  ER75TD



  Technical Specifications


Power Supply

110VAC or 220VAC, 50/60 Hz, 1 ph

Balancing Speed

< 100 rpm

Balancing Accuracy

< 0.1 oz (< 1 g)

Average Cycle Time

5 seconds

Rim Diameter Capacity

10" - 30" (265 - 765 mm)

Rim Width Capacity

1.5" - 20" (40 - 510 mm)

Max. Wheel Weight

165 lbs (75 kg)

Max. Tire Diameter

42" (1,067 mm)

Operating Temperature

32 - 113°F (0 - 45°C)

Shaft Size

40 mm

Operating pressure

7-10 bar (105-145 psi)

Gross Ship. Weight

400 lbs (180 Kg)














  Documents:

  User Manual

  Brochure

  Standard Accessories



cemb er75 wheel balancer standard accessores

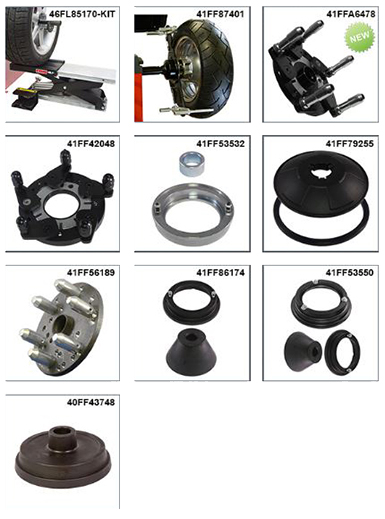

  Optional Accessories



cemb er75 wheel balancer optional accessores
