Cemb EZ29 Portable digital wheel balancer


    ez29 wheel balancer cemb
  Features and Benefits


EZ29 balances steel & light alloy wheels of cars, light trucks, motorcycles & scooters (with optional adaptors)
Automatic Distance and Diameter Entry 2D
Wheels for easy portability
Standard Quick Nut Mounting
Standard lightweight battery pack for use when power not available
Unique size, weight & dual power supply (12VDC or 110VAC) EZ29 becomes mobile for onsite balancing

  • Foot Brake for exact placement of wheel weights
  • Self-Diagnosis and Self-Calibration
  • Menus for quick selection of the following:
    inches to millimeters
    unbalanced thresholds 0.1 or 0.25 ounces (1 or 5g)
    Selection ounces/grams
  • Optimization program for compensation of rim and tire unbalance
  • "Static" program--plus 4 ALU programs for PAX, light alloy or special shaped rims
  • One Button Split & Hidden Weight Program












  Technical Specifications


Power Supply

110VAC or 12VDC

Balancing Speed

< 100 rpm

Balancing Accuracy

< 0.1 oz (< 1 g)

Average Cycle Time

5 seconds

Rim Diameter Capacity

10" - 30" (265 - 765 mm)

Rim Width Capacity

1.5" - 20" (40 - 510 mm)

Max. Wheel Weight

165 lbs (75 kg)

Max. Tire Diameter

42" (1,067 mm)

Operating Temperature

32 - 113°F (0 - 45°C)

Shaft Size

40 mm

Gross Ship. Weight

150 lbs (68 Kg)













  Documents:

  User Manual

  Brochure

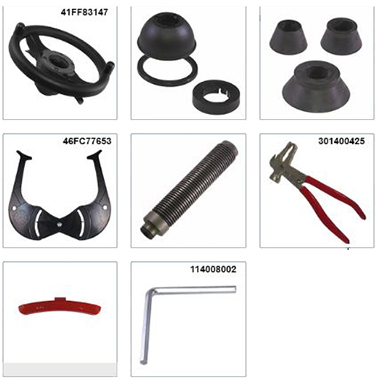

  Standard Accessories



cemb wheel alignement ez29 standard accessories

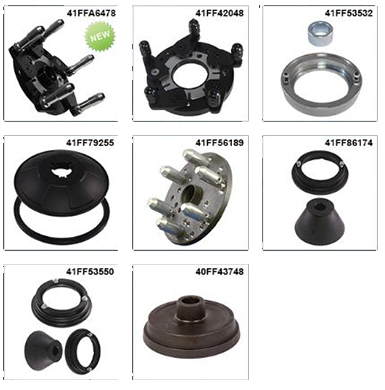

  Optional Accessories



cemb wheel alignment ez29 optional accessories
