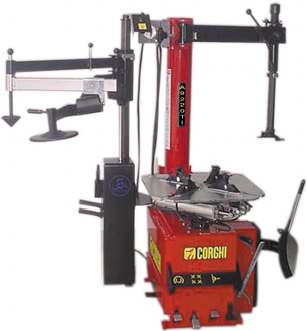

Corghi A9824TI-1500 Tire Changer

  Popular Accessories corghi  A9220Ti-1500


  • Built-in table inflator with jets in the jaws
  • Unique mount/demount head does not touch the rim during operation
  • Locking handle locks head away from the rim
  • Upper arm assembly swings out-of-way
  • Powerful action bead-breaker blade follows bead to inside rim contour
  • Heavy-duty turntable rotates in either direction
  • Rebuildable stainless steel cylinders
  • Can be used as a motorcycle tire changer
  • External Rim Size: 12"-24"
  • Optional w/Adapter: 12”-28”
  • Internal Rim Size: 13"-26"
  • Voltage: 110V 1 Ph or Air
  • Rim Width: 2"-15"
  • Maximum Tire Diameter: 47"
  • Air Pressure: 150 PSI
  • Bead Breaker Power @ Shoe: 3500 lbs
  • Torque: 737 ft/lbs
  • Weight: 550 lbs
  Plus PU1500 Power Assist Unit:
  • Pneumatic powered
  • Wheel and bead pressing arm
  • Bead lifter
  • Maintains bead in drop center
  • Eliminates bead stress
  • Eliminates wheel damage
  • One person operation to change even the most difficult tires
  • PAX capable with PAX kit
  • Rim clamping assist
  • Shipping weight 750 lbs.

Superior quality teamed with a sleek design and other unique features allow this machine to achieve speeds up to 50% faster than any other changer on the market in its price range. That's why Corghi was awarded ISO 9001 Certification, industry's most coveted award. Run-flat certified by all major tire manufacturers.

  • ISO 9001 Certified
