Equip Jet from Repquip Sales




Our mission is to provide superb engineering, offer state-of-the-art equipment at fair market prices and extend excellent follow-up service to distributors and end-users for our Spray Washer Cabinets.

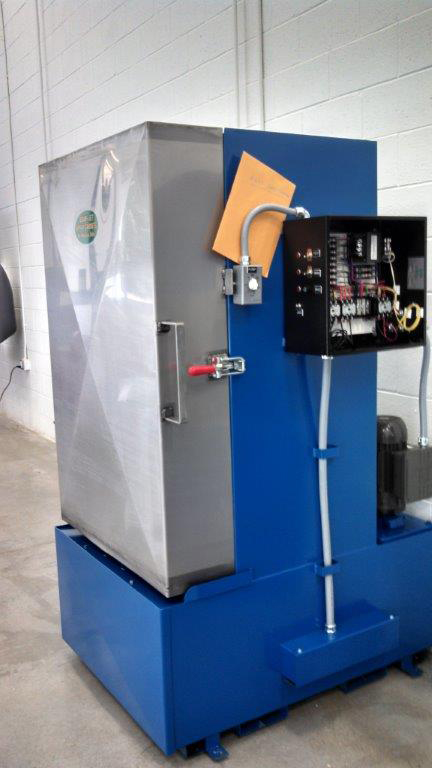

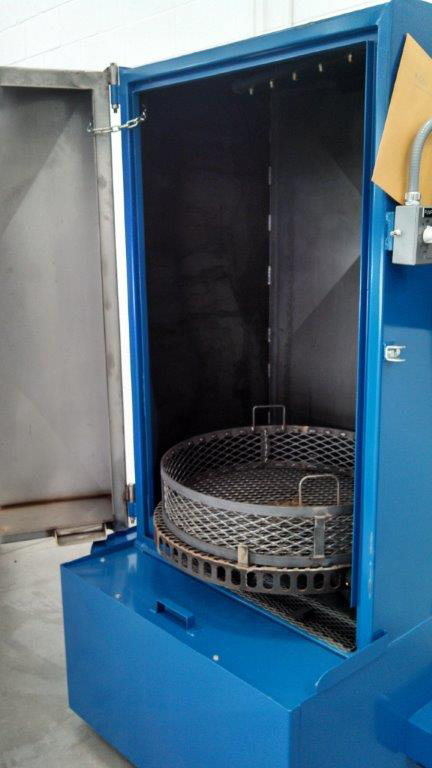

  Spray Washer Cabinet   Spray Washer Cabinet









  Click Image to View Larger   Click Image to View Larger



3045 Parts Washer





Standard Steel Fabrication





Overall Dimensions

48" L  X  36" W  X  77"H

Inside Working Height

45"

Turntable Diameter

30"

Work Load

1500 Lbs.

Pump Motor (Sealess)

3 Horse

Pump Output

50 PSI @ 26 Gal. Per Min.

Cabinet Construction

12 Gauge

Power Source

230 / 460 V 3 Phase

Water Capacity

127 Gallons

Turntable Drive

Gear Driven

Door Seal

Mechanical

Warranty

One Year (Parts)

Heat Source

12 KW

Shipping Weight

850 Lbs.

Nozzles

17

Intermediate Spray Bar

1

Cabinet Vent

5.75 " Diameter

Casters

5  non marring"





Standard Features







Carbon Steel



With stainless steel door,

Skimmer and low water



shut-off standard







Optional Features







Insulation



Tank Insulation

Option

Entire Unit Insulation

Option





Stainless Construction

 (Standard Steel MUST

304 Stainless Steel *

   be Selected)





Additional Options







F1 Filtering Systems



7 Day Heat Timer



7 Day Skim Timer



230 Volt Single Phase



Crane Slot



Automatic Water Fill





Spray Washer Cabinet












Click Image to View Larger




PDF Specs Sheet
