Firman Power Equipment Generator and Invertors Performance Series




  Model P03601

  3650 Watt generator     Performance series

  firman generator 3601

FEATURES & BENEFITS:

  1. FIRMAN OHV engine (Max-Pro Series) longer life, higher performance & lower maintenance
  2. Largest tank in the industry extended runtime (less re-fueling) w/ built in tank gauge
  3. Perform Longer & Stronger W/Phoenix Fat Head Blocks & FIRMAN PowerStream Alternators,
  4. Low oil shutdown, cast iron sleeve – these gens perform!
  5. High leverage single folding handle with grip for easy maneuverability
  6. Quiet muffler (Whisper Series) with USDA FS certified spark arrester
  7. Volt Lock - Automatic Voltage Regulator VS (Voltage-Compensator) series

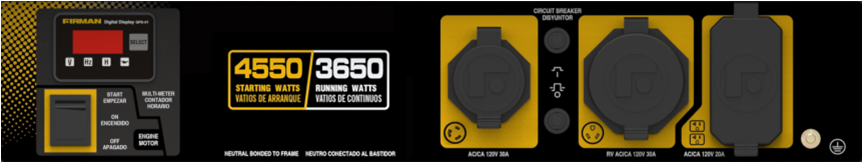

  8. 4-in-1 Data-Minder monitor Volts, Hz, Hours and low oil
  9. Color coded control touch points











Model

1Rev Level P03601 1 01

UPC

840876136010

49 States

Yes

Californ ia (GARB)

No

Canada (CETL)

Yes

Running Watts

3650

Starting Watts

4550

Frequency (Hz)

60

Engine Displacement (cc)

208

Engine Type

OHV

Startmg System

Recoil

Cylinder

Single






Fuel Type

Gasoline

Low Oil Shutdown

Yes

Cast I ron Sleeve

Yes

Brushed or Brushless

Alternator Brushed

Automatic Voltage Regu lator (AVR)

Yes

Fuel Tank Volume (Gal)

5.0

Fuel Gauge

Yes

Runtime @50% load (hours)

14.0

USDA FS Certified Spark Arrester

Yes








  3601 firman Generator



  3601 firman generator








  Model P03603 Remote
  3650 Watt generator     Performance series

  3603 firman generator

FEATURES & BENEFITS:

  1. The FIRMAN OHV engine (Max-Pro Series) for longer life, higher performance and lower maintenance
  2. Largest tank in the industry (less re-fueling), built in tank gauge
  3. Perform Longer & Stronger, equipped with Phoenix Fat Head Blocks
  4. FIRMAN PowerStream Alternators,
  5. Low oil shutdown, cast iron sleeve – these gens perform.
  6. High leverage single folding handle with grip for easy maneuverability
  7. Quiet muffler (Whisper Series) with USDA FS certified spark arrester
  8. Volt Lock - Automatic Voltage Regulator VS (Voltage-Compensator) series
  9. 4-in-1 Data-Minder monitor Volts, Hz, Hours and low oil
  10. Color coded control touch points









Model

P03602

Running  Watts

3650

Starting Watts

4550

Engine Displacement

208 cc

Voltage - Frequency

120VAC – 60Hz

Noise Level (23 ft) @  1/4 Load

67 dB

Fuel Tank Capacity

5.0 Gallons

Run Time @ 50% Load

14 Hours

Dry Weight

134 lbs.

Shipping Dimensions (LxWxH)

28.5”x21.1”x20.7”

Warranty

3 years









  3603 firman generator



  3603 firman generator





  Model P05701
  5700 Watt generator

Performance series



  5701 firman generator

FEATURES & BENEFITS:

  1. The FIRMAN OHV engine (Max-Pro Series) for longer life, higher performance and lower maintenance.
  2. Largest tank in industry - extended runtime (less re-fueling) w/ tank gauge.
  3. Phoenix Fat Head Blocks FIRMAN & PowerStream Alternators
  4. High leverage single folding handle with grip for easy maneuver.
  5. Whisper Series Muffler with USDA FS certified spark arrester.
  6. Volt Lock - Automatic Voltage Regulator VS (Voltage-Compensator) series.
  7. Durable compact roll-cage frame
  8. 4 in 1 Data-Minder monitor Volts, Hz, Hours and low oil.
  9. Color coded control touch points.











Model

P05701

Running  Watts

5700

Starting Watts

7125

Engine Displacement

389cc

Voltage - Frequency

120/240VAC – 60Hz

Noise Level (23 ft) @  1/4 Load

72 dB

Fuel Tank Capacity

8.0 Gallons

Run Time @ 50% Load

12.5 Hours

Dry Weight

174 lbs.

Shipping Dimensions (LxWxH)

?” x ?” x ?”

Warranty

3 years










  5701 firman generator


  5701 firman generator






  Model P08003 Remote
  8000 Watt generator

Performance series



  8003 firman generator

FEATURES & BENEFITS:

  1. The FIRMAN OHV engine (Max-Pro Series) for longer life, higher performance and lower maintenance
  2. Largest tank in industry, extended runtime (less re-fueling) w/ built in tank gauge
  3. Phoenix Fat Head Block and FIRMAN PowerStream Alternator
  4. High leverage single folding handle with grip for easy maneuver
  5. Quiet muffler (Whisper Series) with USDA FS certified spark arrester
  6. Automatic Voltage Regulator VS (Voltage-Compensator) series
  7. Durable compact roll-cage frame design
  8. 4 in 1 Data-Minder monitor Volts, Hz, Hours and low oil
  9. Color coded control touch points









Model

P08003

Running  Watts

8000

Starting Watts

10000

Engine Displacement

439cc

Voltage - Frequency

120/240VAC – 60Hz

Noise Level (23 ft) @  1/4 Load

74 dB

Fuel Tank Capacity

8.0 Gallons

Run Time @ 50% Load

12 Hours

Dry Weight

? lbs.

Shipping Dimensions (LxWxH)

?” x ?” x ?”

Warranty

3 years









  8003 Firman Generator


  8003 b





  Model P01201     Performance Series
  1200 Watts Generator

  PO1201 firman generator

Features & Benefits

  • The FIRMAN OHV engine ( Max-Pro Series) for longer life/higher performance/lower maintenance􀀏
  • Cast iron sleeved (CIS) engine for long durability with automatic low oil shutdown (LOS) protection.
  • Largest tank in industry with extended run-time (less re-fueling) with built-in tank gauge for convenience.
  • Quiet muffler (Whisper Series) with USDA FS certified spark arrester.

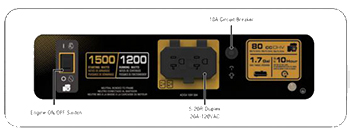

  • Conveniently located multi-featured control panel with FIRMAN custom designed outlet cover protecting
  • outlets from dirt, dust and debris.
  • Durable compact roll-cage frame design with 0.75” steel tubing.
  • Bonus accessories including engine oil, oil funnel and tool kit.
  • 3 years warranty: best in industry.




Model /Rev Level

P01201 / 00

UPC

840876112014

49 States

Yes

California (CARB)

No

Canada (CSA)

No

Running Watts

1200

Starting Watts

1500

Frequency (Hz)

60

Engine Displacement (cc)

80

Engine Type

OHV

Starting System

Recoil

Cylinder

Single

Fuel Type

Gasoline

Low Oil Shutdown

Yes

Cast Iron Sleeve

Yes

Brushed or Brushless Alternator

Brushless

Automatic Voltage Regulator (AVR)

No

Fuel Tank Volume (Gal)

1.7

Fuel Gauge

Yes

Runtime @50% load (hours)

10.0

USDA FS Certified Spark Arrester

Yes



Handle

No

Wheel

No

Battery

No

Accessories

Oil Bottle-Funnel-Tool Kit

Warranty Residential / Commercial (years)

3 / 1

Carton L×W×H (inch)

20.3 × 15.8 × 17.6

Unit Weight (Ibs)

54

Shipping Weight (Ibs)

61









      PO1201









  PO1201
