Flow Dynamics Transmission Fluid X-Changer TSD450


  TSD450LCD TS450

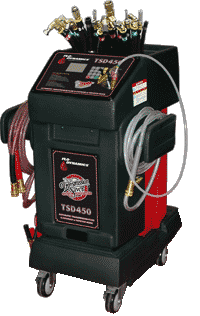

Flo-DynamicsTSD450 Transmission Fluid X-Changer has the fastest, most reliable, and now the easiest transmission fluid exchanger on the market... dipstick or inline!

TSD450LDCPic





Additional Key Exclusive Features:
• Select ANY quantity from 1 to 20 quarts
• Easy to follow screen prompts
• Power interruption memory
• Quart Counter
• Pause Button
• Volt Meter








  SCreen1





  FEATURES
  Start Menu
  Screen2

Roto-cast polyethylene body and tanks
Fully interactive LCD menu
Ergonomically correct working height
5-inch locking caster wheels
Clear service hoses
Adapter hoses for easy hookup
Easy-access service panel







  ...flush in progress... SPECIFICATIONS:
  Screen3
  • Dimensions:  39"H x 24 3/4"W x 25"D
• Shipping Weight:
 95 lbs.
• Fluid Tanks:
 24qt. New & Waste
• Power:
 12V DC from vehicle's battery






  ...when complete.

  STATE-OF-THE-ART DESIGN


  • Accurate sensor technology allows optimum fluid level to be maintained in vehicle’s transmission.
  • Two in-line 10-micron absolute fluid filters capture microscopic particles and contaminants.
  • Easy to use adapters allow quick hookup to virtually any automobile make and model, saving time and money.
  • Clear service hoses give visual confirmation of new and used fluid movements.
  • Ergonomically correct working height means greater productivity, less stress and strain.
  • Durable roto-cast polyethylene body and tanks prevent vehicle damage. The unit is also lightweight and durable, for easier handling and longer life.
  • Large 5-inch locking caster wheels make machine easy to maneuver.










  PERFORMANCE-DRIVEN BENEFITS


  • Fully automatic. Performs an entire exchange with the push of a button.
  • Requires no pit, lift, ramp or auxiliary power supply, and utilizes vehicle’s 12-volt battery, so it can be used anywhere.
  • 2.5 gallon per minute pump ensures rapid exchanges.





  AUTOMATIC TRANSMISSION FLUID EXCHANGE BENEFITS


  • Completes fluid exchange in minutes.
  • Remove fluid feature allows easier & cleaner removal of pan for filter change when necessary.
  • Waste fluid is drained at the touch of a button. So there’s no need to turn the machine upside down. Less effort and downtime mean greater efficiency.
  • Dual Process: Full service exchange or optional dipstick mode with no cooler line connections required.

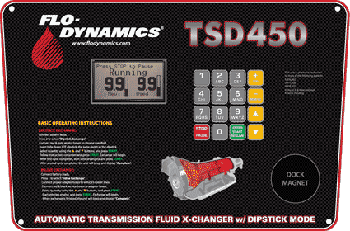

Fully interactive control panel provides easier operation with
closer monitoring for greater efficiency, control and cost savings.




  LCDl Panel
