Flow Dynamics Transmission Fluid X-Changers



  TRANSMISSION SERVICE EQUIPMENT

  Models Below

  735 SERIES Heavy Duty ATF & Power Steering Fluid X-Changers
  TS410  Inline-only Transmission X-Changer
  TSD440 Transmission Fluid X-Changer
  TSD450 LCD Inline & Dipstick X-Changer
  TSD650 DUAL Dipstick X-Changer w/ Dual New Fluid Tanks
  Pro Max40 Transmission X-Changer




  735 SERIES Heavy Duty ATF & Power Steering Fluid X-Changers

  ts735 flow dynamics transmission fluid tsp735 flow dynamics fluid transmission tsd735 flow dynamics transmission fluid tsdp735 flow dynamics fluid transmission






  P/N: 98018 P/N: 98020 P/N: 98019 P/N: 98021
  TS735 TSP735 TSD735 TSDPS735
  TRANSMISSION (INLINE)
Transmission fluid
exchange through vehicle's
transmission cooler lines
TRANSMISSION (INLINE)
& POWER STEERING FLUID
Multi-function service,
transmission fluid exchange
or patented integrated
power steering exchange
TRANSMISSION
(INLINE or DIPSTICK)
Multi-method transmission
fluid exchange: inline or
through the dipstick
TRANSMISSION (INLINE or
DIPSTICK) & POWER STEERING
Multi-function service,
transmission fluid exchange
(inline or dipstick) or
patented integrated power
steering exchange






  ALL MACHINES INCLUDE:
  • Ability to select any fluid exchange amount
    from 1 - 35 quarts
  • Patented electronic measuring technology
  • Fully interactive LCD control panel shows the technician everything going on, taking out all the guesswork
  • Large 2.5 GPM pump able to handle anything
    from low-flow vehicles to trucks & buses
  • ADD and REMOVE fluid features
  • SWITCH HOSES indicator & the ability to switch
    flow direction with the push of a button
  • Patented electronic measuring technology
  • Fluid totalizer
  • Power loss memory
  • Pause function
  • Large 35 quart tanks
735 series control panel flow dynamics transmission fluid











  PERFORMANCE-DRIVEN BENEFITS:
  • Accurate sensor technology allows optimum fluid
    level to be maintained in vehicle's transmission.
  • Two in-line 22-micron absolute fluid filters capture microscopic particles and contaminants.
  • Easy to use adapters allow quick hookup to virtually any automobile make and model, saving time and money.
  • Fully automatic. Performs an entire exchange
    with the push of a button.
  • 2.5 gallon per minute pump ensures rapid exchanges.

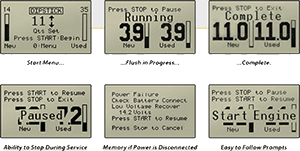

735 series flow dynamics transmission menu






  FEATURES:
  • Roto-cast polyethylene body and tanks
  • Drains vehicle's transmission for filter change
  • Ability to add and remove fluid
  • Adapter holder drains directly into waste tank
  • Ergonomically correct working height
  • 5-inch locking caster wheels
  • Clear service hoses
  • Select ANY quantity from 1 to 35 quarts
  • Easy to follow screen prompts
  • Quart Counter
  • Pause Button
  • Power interruption memory
  • Volt Meter
SPECIFICATIONS:

Dimensions:  39"H x 24 3/4"W x 25"D
Shipping Weight:
   TS735: 132 lbs.
   TSPS735: 138 lbs.
   TSD735: 138 lbs.
   TSDPS735: 140 lbs.
Fluid Tanks:  35 qt. New & Used
Power:  12V DC from vehicle's battery






  Documents:
  Flyer
  Maunal
  Hose Chart
  Optional Adapters




  Flow Dynamics TS410  Inline-only Transmission X-Changer

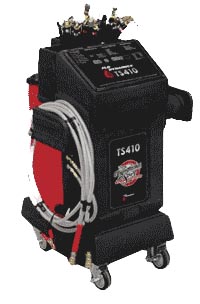

  ST410.gif Flow Dynamics TS410 Transmission fluid excahnger


  FEATURES
  • Special chemical flushing mode
  • Cooler line exchange
  • Select any quantity from 1-20 quarts
  • Power interruption memory
  • 24-quart new and waste fluid tanks
  • Easy to use
  • Pause button
  • Fully automatic operation
  • Large 2.5 gallon-per-minute pump performs faster exchanges
  • 12 volt powered
  • Proven, accurate fluid measurement (+/-3%)
  • Individual add and remove fluid buttons
  • Voltmeter
  • Quart counter





  BENEFITS

  • Large backlit LCD screen provides valuable information and walks the technician through the service making for a faster and easier exchange
  • Roto-cast polyethylene body won’t scratch vehicle
  • Adapter rack drains into the waste tank keeping the adapters neat and organized
  • 5-inch locking caster wheels
  • Small platform does not take up a lot of room
  • Clear service hoses provide visual confirmation
    of fluid exchange



  TS410Beakers


  Specifications
  Dimensions:  39”H x 24 3/4”W x 25”D
Power:  12V DC from vehicle’s battery
Fluid Tanks: 24 qt. new & waste
Weight:  95 lbs.




  Documents:
  Quick Instruction Guide
  Maunal
  Hose Chart
  Optional Adapters

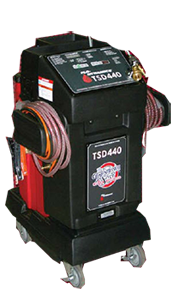

  Flow Dynamics TSD440 Transmission Fluid X-Changer TSD440 flow dynamics

  Flow Dynamics TSD440




  FEATURES
  • Dipstick exchange
  • Select any quantity from 1-20 quarts
  • Special chemical flushing mode
  • Power interruption memory
  • Drains vehicle’s transmission for filter change
  • 24-quart new and waste fluid tanks
  • Easy to use
  • Pause button
  • Fully automatic operation
  • Large 2.5 gallon-per-minute pump performs faster exchanges
  • 12 volt powered
  • Proven, accurate fluid measurement (+/-3%)
  • LED service indicators
  • Individual add and remove fluid buttons
  • Voltmeter
  • Quart counter

  BENEFITS

  • Large backlit LCD screen provides valuable information and walks the technician through the service making for a faster and easier exchange
  • Roto-cast polyethylene body won’t scratch vehicle
  • Adapter rack drains into the waste tank keeping the adapters neat and organized
  • 5-inch locking caster wheels
  • Small platform does not take up a lot of room
  • Clear service hoses provide visual confirmation of fluid exchange







  SPECIFICATIONS
  Dimensions:  39”H x 24 3/4”W x 25”D
Shipping Weight:  95 lbs.
Fluid Tanks: 24 qt. new & waste
Power:  12V DC from vehicle’s battery



  Documents:
  Quick Instruction Manual
  Maunal
  Hose Chart
  Optional Adapters




  TSD450 LCD Inline & Dipstick X-Changer

  Flo-DynamicsTSD450 Transmission Fluid X-Changer has the fastest, most reliable, and now the easiest transmission fluid exchanger on the market... dipstick or inline!


  tsd450 image tsd450 transmission X-changer




  FEATURES
  • Cooler line and dipstick exchange modes
  • Select any quantity from 1-20 quarts
  • Power interruption memory
  • Drains vehicle’s transmission for filter change
  • 24-quart new and waste fluid tanks
  • Easy to use
  • Pause button
  • Fully automatic operation
  • Large 2.5 gallon-per-minute pump performs faster exchanges
  • 12 volt powered
  • Proven, accurate fluid measurement (+/-3%)
  • Individual add and remove fluid buttons
  • Voltmeter
  • Quart counter







  tsd450 control panel





  BENEFITS


  • Large backlit LCD screen provides valuable information and walks the technician through the service making for a faster and easier exchange
  • Roto-cast polyethylene body won’t scratch vehicle
  • Adapter rack drains into the waste tank keeping the adapters neat & organized
  • 5-inch locking caster wheels
  • Small platform does not take up a lot of room
  • Clear service hoses provide visual confirmation of fluid exchange
  • Perform more services and generate more revenue than with traditional ATF exchange equipment
tsd450 in use







  SPECIFICATIONS Documents:
  Dimensions:  39”H x 24 3/4”W x 25”D
Fluid Tanks: 24 qt. new & waste
Power:  12V DC from vehicle’s battery
Weight:  95 lbs.
Flyer
  Maunal
  Hose Chart
    Optional Adapters




  Flow Dynamics TSD650 DUAL Dipstick X-Changer w/ Dual New Fluid Tanks

  tsd650 image flow dynamics tsd650 transmission fluid exchange



  FEATURES
  • Dual new fluid tanks allow user to select fluid type at the touch of a button.
  • Special chemical flushing mode
  • Cooler line and dipstick exchange modes
  • Select any quantity from 1-24 quarts
  • Power interruption memory
  • Drains vehicle’s transmission for filter change
  • Large dual 28-quart new fluid tanks and 28 quart waste tank
  • Easy to use
  • Pause button
  • Fully automatic operation
  • Large 2.5 gallon-per-minute pump performs faster exchanges
  • 12 volt powered
  • Proven, accurate fluid measurement (+/-3%)
  • LED service indicators
  • Individual add and remove fluid buttons
  • Voltmeter
  • Quart counter














    Fully interactive easy to use control panel

  BENEFITS
  • Large backlit LCD screen provides valuable information and walks the technician through the service making for a faster and easier exchange
  • Roto-cast polyethylene body won’t scratch vehicle
  • Adapter rack drains into the waste tank keeping the adapters neat and organized
  • Small platform does not take up a lot of room
  • Clear service hoses provide visual confirmation of fluid exchange
  • Perform more services and generate more revenue than with traditional ATF exchange equipment
SPECIFICATIONS

Dimensions:  48 1/2”H x 23”W x 27”D
Shipping Weight:  190 lbs.
New Fluid Tanks:  28 quarts (2)
Waste Fluid Tank:  28 quarts (1)
Power:  12V DC from vehicle’s battery









  Documents:
  Quick Start Instructions
  Maunal
  Hose Chart
  Optional Adapters




  Flow Dynamics Pro Max40 Transmission X-Changer

  Promax40



  FEATURES
  • Easy to use adapters allow quick hookup to virtually any automobile make and model
  • Fully automatic operation allows greater revenue and profit.
  • Large 40 qt. capacity
  • Large 2.5 gallon-per-minute pump performs faster exchanges.
  • Portable, fully interactive; Works with vehicle’s 12-volt battery for easy fluid exchanges
  • Integrated battery tester
  • Adapter management rack
  • Includes both standard and Allison adapter sets
flow dynamics pro max40 transmmission x-cahnger








  BENEFITS
  • Completes fluid exchange in minutes.
  • Remove fluid feature allows easier & cleaner removal of pan for filter change when necessary.
  • Waste fluid is drained at the touch of a button.
  • Four capacity selections (16, 20, 28 & 40 qt.) allow for specified amounts of automatic transmission fluid to be pumped through the transmission, for more cost-effective servicing.

promax40 control panel









SPECIFICATIONS

Dimensions: 43”H x 23”W x 26”D
Fluid Tanks: 40 qt. new & waste
Power: 12V DC from vehicle’s battery
Weight: 140 lbs.

Documents:
  Flyer
  Maunal
  Standard Hose Chart
  Universal Allison Hose Chart
  Optional Adapters
