Henry Four Post Lift



  TP9LACX. TP9KSCX & TP9KFX Models Numbers TP9LACX. TP9KSCX & TP9KFX

  TP9LACX. TP9KSCX & TP9KFX Standard Features:
• High Quality Construction
• Chain Drive
• Dual Point Lock Release
• Saddle Pad Adapters included (1 pair)
• Powder coat finish
New TP9K “X” Features:
• Single Piece Column construction (TP9KACX - TP9KSCX)
• Padded ‘Shut Off’ Bar w/Kill Switch (TP9KACX - TP9KSCX)
• Low Profile ‘drop-in’ Swivel Pads w/ 1-1/2” adjustable height
• 4ea Stackable 1-3/8” & 4” ‘drop in’ Height Adapters
• Reduced overall Width w/ front-side Power Unit Mounting
• Internal Hose Routing w/ integrated Hose Guards
• Rubber Door Guards








  Documents:

  Specs



  Optional Accessory:

  TP9KX-SPNCA
Spin Up Cradle Adapter, TP9KX (4















  8,000 lb. Deluxe

Model Numbers: FP8K-DX & FP8K-DX-XLT

  Service / Storage Lifts

  FP8K-DX & FP8K-DX-XLT • 8.000 lbs. capacity
• High Quality Service I Storage Lifts
• Slack-Cable I Safety Device System
• Internal Lock Ladder design
• Non-Skid Diamond Plate Runways
·Adjustable Lock Ladder leveling
• Single Point. ManualLock release
• Powder coat finish
• Steel approach ramps
• INCLUDED Poly Caster Kit
• INCLUDED 3ea Drip Trays
• INCLUDED Jack /Tool Tray








  Documents:

  Specs


  Optional Accessory:

  SJ.J5 Sliding S 3,500 lbs scissor Jack


  FP7K-4023 Aluminum Approach Ramps (Set of 2)





  9,000 LB. Deluxe, XLT Service / Storage Lift Model Number: FP9K-DX·XLT



  2 9,000 lbs. capacity
• Commercial grade Lift
• Non-skid Diamond Plate Runways
• Adjustable Lock Ladder leveling
Single Point, Manual Lock release
Powder coat finish
Steel approach ramps
INCLUDED Poly Caster Kit
INCLUDED 4ea Drip Trays
INCLUDED Jack / Tool Tray







  Documents:

  Manual

Lifting Capacity:

9,000 lbs.

Overall Length w/ Ramps:

85”

Overall Width:

239”

Approach Ramp Length:

197”

Runway Length:

123”

Column Height:

134.5”

Clearance between Runways:

37”

Clerance Under Runways:

20”

Locking Positions:

188.5”

Power:

4.80”

Lifting Height:

97”

Overall Length w/ no Ramps:

111.5”

Overall Width w/ Power Unit:

39.5”

Runway Tread Width:

79”

Runway Height:

81”

Clearance between Columns:

99”

Outside Runway to Outside Runway:

11

Drive Thru Width:

90s

Lifting Speed:

110V-15A,1PH

Ship Weight:

2,365 lbs.



  Specs

  Optional Accessory:
















  FP12K-K

  FP12K-K Modell Number: FP12K-K


  • 12,000 lb lifting capacity
  • Cable driven with cylinder stored under track
  • No power beam
  • Adjustable leveling-locks in each column for use on uneven floors
  • One piece non skid diamond plate tracks
  • Optional 4,400lb. cap. rolling jack







  Documents:

SPECIFICATIONS

FP12K-K





Lifting capacity

12000 lbs.

Total width (to outside base plates)

123”

Width between posts

105”

Width between tracks

36 1⁄2”

Ramp length

36”

Track length (without ramp)

191”

Track outside width

78”

Track width

21”

Base plate dimensions

11” x 11”

Overall length (to outside base plates)

196”

Lifting height to top of track

67 1⁄2”

Maximum clearance under track

63 1⁄4”

Overall height

89”

Length between posts

177”



  Manual

  Specs











  FP14K-C

  FP14K-C Model Nubmer: FP14K-C





  • 14,000 lb lifting capacity
  • Cable driven with cylinder stored under track
  • Single point pneumatic safety release mechanism
  • 20" non-skid, diamond plate runways
  • Powder-coated paint finish
  • C-channel construction
  • Hydraulic Operation for minimum maintenance







  Documents:

  Specs


SPECIFICATIONS:

FP14K-C

Lifting capacity

14000 lbs.

Overall runway length

204”

Overall width

136 3⁄4”

Width between posts

118 1⁄4”

Width of runways

20”

Width between runways

31 1⁄4”

Maximum wheel base (2 wheel)

185”

Maximum wheel base (4 wheel)

158”

Column height

88 5⁄8”

Lifting height

9 7⁄8” - 68 7⁄8”

Power pack

2hp 220/230 vac 20 amps

Shipping weight

3270 lbs.



















7,000 lb. capacity High Rise Storage Lift













7K

Model Number: RV-7K













•Over 11" of under car clearance.
•Outside guide rails on runways for extra safety.
•Internal anti-sway slider blocks in each column. Electric/hydraulic

power system






















Documents:

Specifications:



Model Number

RV-7K

Overall length

211"

Overall width

150 3/8"

Overall height

169 1/4"

Lifting height

7 1/8"-144 7/8"

Lifting capacity

7,000 lbs.

Power

220vac/60Hz/1PH

Net weight

3476 lbs.


















































14,000lb. capacity Four Post Alignment Lift



    Model Number: FP14KA-C
  fp14kcal

* 14,000 lb Lifting capacity
* Cable drive
* Single point pneumatic safety release mechanism
* 20" wide non-skid, diamond plate runways
* Powder-coated paint finish
* C-channel construction
* Hydraulic Operation for minimum maintenance
* Three turntable positions for a wide range of vehicles
* Optional turntables available
* Rear slip plates mounted on ring roller bearings
* Fully adjustable lock stops for easy leveling









Documents:








Specifications



Model Number

FP14KA-C

Lifting Capacity

14,000 lbs

Overall runway length

204"

Overall width

136 3/4"

Width between posts

118 1/4"

Width of runways

20"

Width between runways

31 1/4"

Max wheel-base(2wheel)

185"

Max wheel-base(4wheel)

158"

Column Height

88 5/8"

Lifting Height

9 7/8" - 68 7/8"

Power Pack

2 hp 220/230vac 20a

Shipping Weight

3780lbs.


  Manual
  Specs Sheet

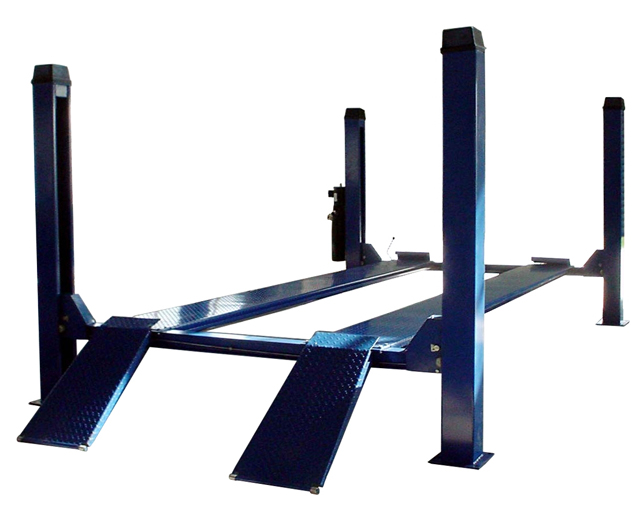

12,000 lb. Four Post Lift





fo10k

Model Number: FP12K-K


  • Cable driven with cylinder stored under track

  • No power beam

  • Adjustable leveling-locks in each column for use on uneven floors

  • One piece non skid diamond plate tracks







  Documents:

Specifications



Model Number

FP12K-K

Lifting Capacity

12,000 lbs

Overall length

196""

Overall Width

123"

Lifting Height

67.5"

Power Unit

220vac 1phs



  Manual
  Specs Sheet










Options:




fp10k

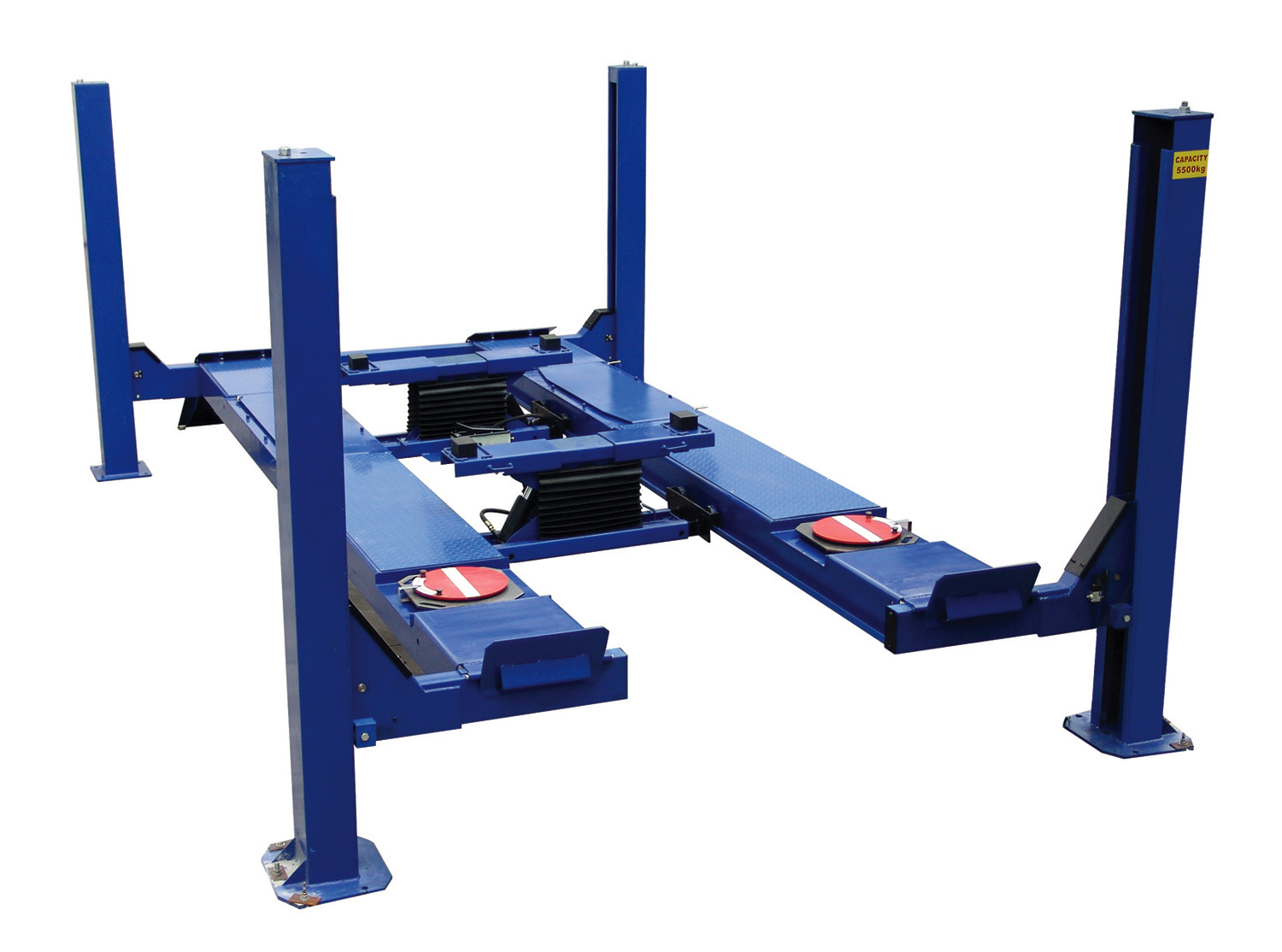

12,000 lb. Capacity Four Post Open Front Alignment Lift



    Model Number: FP12KOA


FP12KO



  • 12,000 lb Lifting capacity

  • Cable drive

  • Single point pneumatic safety release mechanism

  • 20 2/3" wide runways

  • Powder-coated paint finish

  • Three turntable positions for a wide range of vehicles

  • Rear slip plates mounted on roller bearings

  • Fully adjustable lock stops for easy leveling










  Documents:

Specifications



Model Number

FP12KOA

Lifting Capacity

12,000 lbs

Overall Length

250"

Overall Width

133 1/2"

Max Wheel Base (2 wheel)

170"

Max Wheel Base (4 wheel)

150"

Lifting Height

72"

Power Pack

2 hp 220/230vac 20a

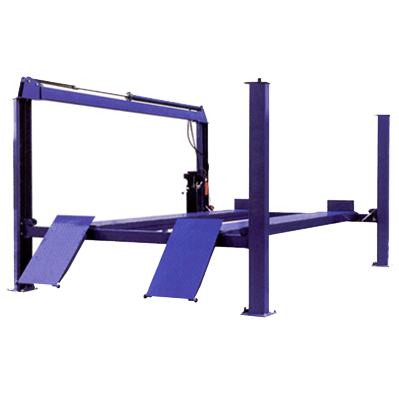

14,000 lb. Four Post Lift





FP14A

Model Number: FP14K


  • 14,000 lb Lifting capacity

  • Chain drive

  • Single point pneumatic safety release mechanism

  • 20" non-skid, diamond plate runways

  • Powder-coated paint finish

  • C-channel construction

  • Hydraulic Operation for minimum maintenance












Specifications

Model Number

FP14K

Lifting Capacity

14,000 lbs

Overall Length

208"

Overall Width

123"

Lifting Height

65.25"

Power Pack

2 hp 220/230vac 20a




Documents:





Manual




Specs Sheet

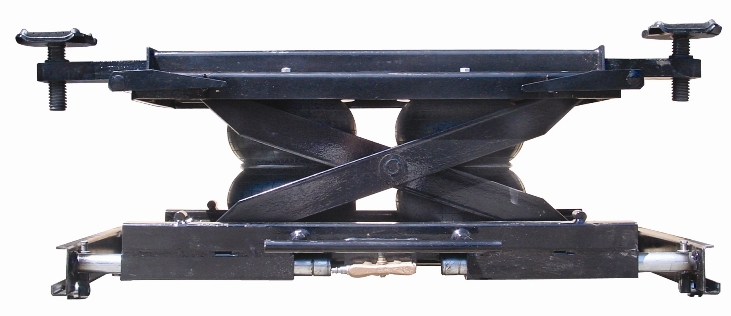

RAJ2085

RodPic








  These heavy duty chain driven lifts are designed for many years of trouble free service. Our four post lifts are constructed with heavy gauge “C” channel.

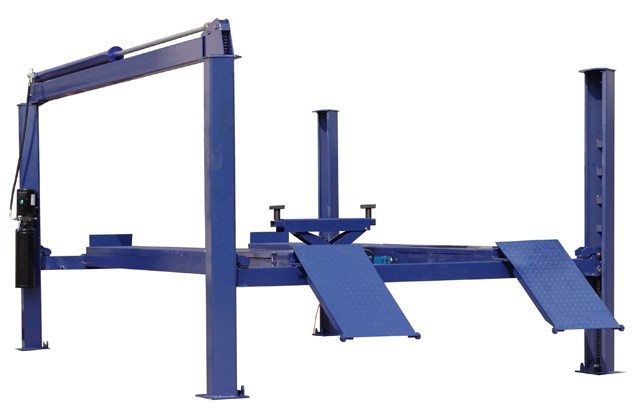

14,000 lb capacity Four Post Alignment Lift





FP14A

Model Number: FP14KA


  • 14,000 lb Lifting capacity

  • Chain drive

  • Single point pneumatic safety release mechanism

  • 20" wide non-skid, diamond plate runways

  • Powder-coated paint finish

  • C-channel construction

  • Hydraulic Operation for minimum maintenance

  • Three turntable positions for a wide range of vehicles

  • Rear slip plates mounted on roller bearings

  • Fully adjustable lock stops for easy leveling






  Documents:

  Manual
  Specs Sheet

  Options:



RAJ2085

Specifications



Model Number

FP14KA

Lifting Capacity

14,000 lbs

Overall Length

208"

Overall Width

123"

Width between posts

108"

Max wheel-base(2wheel)

167"

Max wheel-base(4wheel)

152"

Lifting Height

67.25"

Power Pack

2 hp 220/230vac 20a










  SJ35






  These heavy duty chain driven lifts are designed for many years of trouble free service. Our four post lifts are constructed with heavy gauge “C” channel.






Product Overview:14,000lb capacity Four Post Open Front Alignment Lift





FP14

Model Number: FP14K-OA



•14,000 lb Lifting capacity
•Cable drive
•Single point pneumatic safety release mechanism
•20" wide non-skid, diamond plate runways
•Powder-coated paint finish
•C-channel construction
•Hydraulic Operation for minimum maintenance
•Three turntable positions for a wide range of vehicles
•Rear slip plates mounted on ring roller bearings
•Fully adjustable lock stops for easy leveling










Documents:





Manual




Specs Sheet

Specifications:



Model Number

FP14K-OA

Lifting Capacity

14,000 lbs

Overall Length w/ramps

24'3"

Overall Width

11'6"

Width between posts

108"

Width of runways

20"

Width between runways

43"

Max wheel-base(2wheel)

208"

Max wheel-base(4wheel)

158"

Column Height

7'8"

Lifting Height

73"

Power Pack

2 hp 220/230vac 20a





Options:





praj













  No obstructions! The open front design on our alignment lift allows total access to front wheel adjustment points and with the cylinder located under the track, there’s no power beam, eliminating risk of damage to doors and mirrors. (Shown with optional rolling jack and turntables.)





  4 Post Lift Accessories

  RAJ-6K Rolling Jack
  RAJ-8K Rolling Jack
  Turntables
