Henry Motorcycle Lift




  Elec-Hydra Motorcycle LiftBench M-2200-IEH

  m 2200 ieh
  • Platform size 88.6" x 31.5"
  • 2,200 lb lifting capacity
  • 110V Integrated elec/hydra power unit with cord and plug
  • Hand held remote control pendant
  • Magnetic lock release
  • 6ea Locking height positions
  • Rear drop panel
  • Stabilizer bar
  • Full width ramp
  • Wheel stops
  • Tie-down anchor eye bolts
  • Platform designed to mount optional vise or chock
  • Platform size may be extended with optional extension kits







  Documents:

  Manual

Specifications:



Capacity

2,200lbs

Min Height

7”

Lifting Height

47.2”

Overall Length w/Ramp

121”

Platform Size

88.6”  x31.5”

Ship Weight

704lbs.(Crate)

Power

110V-60hz,15Amp,1Ph



  Specs Sheet



  Elec-Hydra ATVLift A-2200-IEH

  a 2200 ieh
  • Complete combined package of M-2200-IEH and ATVKIT-2200IEH
  • All Hardware included
  • Great for large to small ATVs, golf carts and go karts
  • Platform size 88.6" x 50"
  • All other features same as M-2200-IEH






  Documents:
Specifications:

Capacity

2,200lbs

Min Height

7”

Lifting Height

47.2”

Overall Length w/Ramp

121”

Platform Size

88.6”x50”

Ship Weight

880lbs.(Crate)

Power

1110V-60hz 15Amp,1Ph





  Manual

  Specs Sheet



  Elec-Hydra UTVLift U-2200-IEH

  u 2200 ieh
  • Complete combined package of M-2200-IEH and UTVKIT-2200IEH
  • All Hardware included
  • Great for large to small UTVs, ATVs, golf carts and go karts
  • Platform size 88.6" x 65"
  • Exclusive Side Panels with Center Drop Panels
  • All other features same as M-2200-IEH






  Documents:
  • Complete combined package of M-2200-IEH and UTVKIT-2200IEH
  • All Hardware included
  • Great for large to small UTVs, ATVs, golf carts and go karts
  • Platform size 88.6" x 65"
  • Exclusive Side Panels with Center Drop Panels
  • All other features same as M-2200-IEH


  Manual
  Specs Sheet



Specifications:



Capacity

2,200lbs

Min Height

7”

Lifting Height

47.2”

Overall Length w/Ramp

121”

Platform Size

88.6”x 65”

Ship Weight

970 lbs.(Crate)

Power

1110V-60hz 15Amp,1Ph











  Trike Motorcycle Lift M-1300C-TRIKE

  Henry Motorcycle Lift M-1300C

Features:

  • 1,300 lbs. lifting capacity
  • Air/hydraulic pump
  • Designed especially for three-wheel motorcycles
  • Extra-large platform
  • 38” working height
  • Built in drop-out panel
  • Powder-coated, diamond tread finish







  Documents:

SPECIFICATIONS:

M 1300 TRIKE

Lifting capacity

1,300 lbs.

Height range

6 3⁄4”  38 1⁄2”

Width overall

62 1⁄4”

Length overall

132 1⁄4”

Shipping weight

660 lbs.



  Manual
  Specs Sheet



  An extra wide platform designed especially for three-wheel motorcycles.

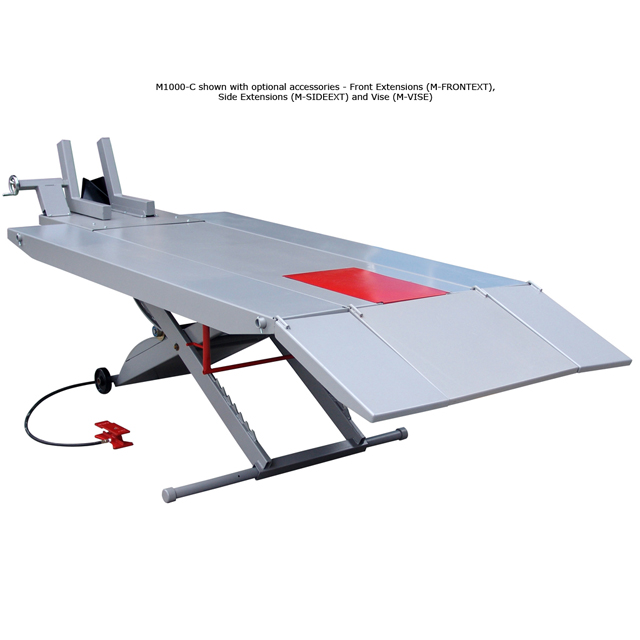

  1,000 lb. Motorcycle Lift

  1,000 lb. Motorcycle Lift Model Number: M-1000C


  • 1,000 lb lifting capacity
  • Air-powered lift
  • Ideal for motorcycles, snowmobiles, ATVs, jet skis, etc.
  • Extra-large platform
  • 30" Working height
  • Choose from a range of accessories to customize this table for your shop




  Documents:
Specifications
Model Number M-1000C
Lifting Capacity 1,000 lbs
Height Range 7" - 30"
Table Dimensions 84" x 24"
Shipping Weight 360 lbs


  Manual
  Specs Sheet

  Options:

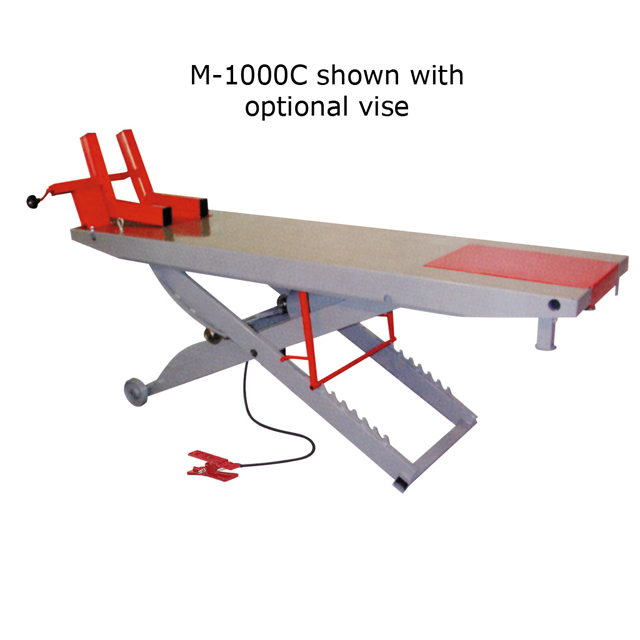

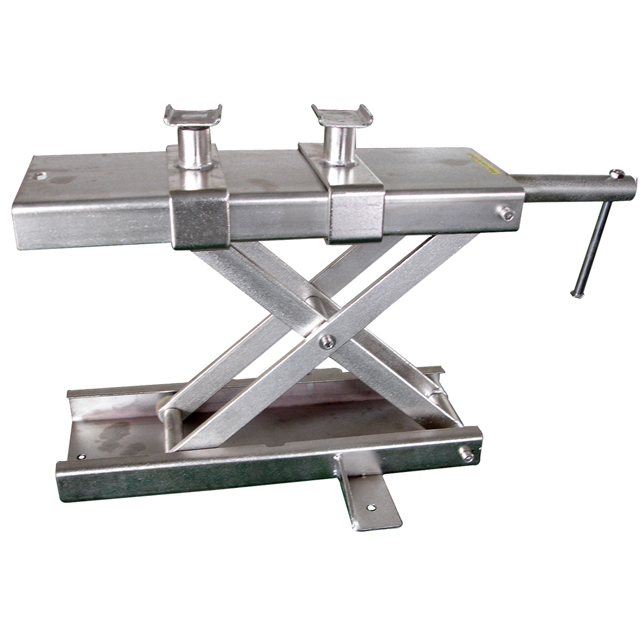

  m jacks side pic m jax m vispend





  These lift tables are ideal for making repairs to motorcycles, snowmobiles, ATVs, jet skis, etc. Choose from a range of accessories to customize these tables for your shop.




  1,500lb Hi-Rise Motorcycle Lift


Model Number M-1500C-HR



  • 1,500 lb lifting capacity
  • Air/hydraulic pump
  • Ideal for motorcycles, snowmobiles, ATVs, jet skis, etc
  • Extra-large platform
  • 38" Working height

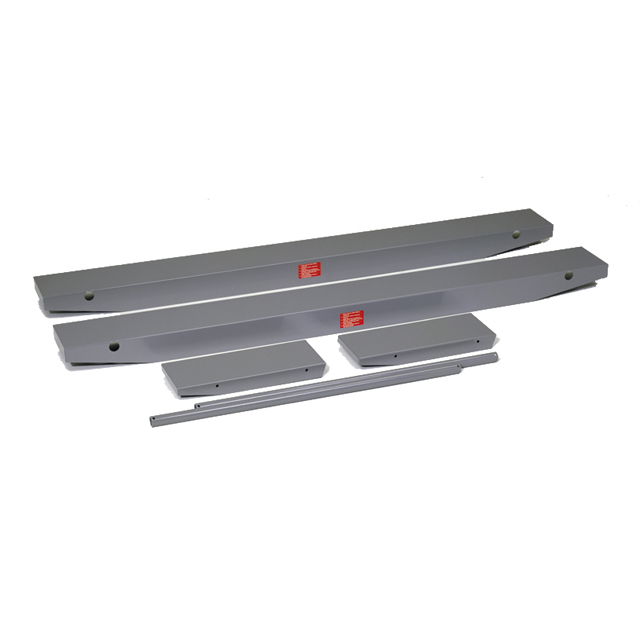

  • Side extensions and vise come standard (see larger image)
  • Built in drop-out panel





  Manual
Specifications:
Model Number M-1500C-HR
Lifting Capacity 1,500 lbs
Height Range 6 3/4" - 38 1/2"
Table Dimensions 88 1/2" x 31 1/2"
Table Dimensions (with side ext.) 88 1/2" x 50"
Shipping Weight 462lbs

  Specs Sheet





  These lift tables are ideal for making repairs to motorcycles, snowmobiles, ATVs, jet skis, etc. Choose from a range of accessories to customize these tables for your shop.



  Motorcycle Accessories

  TRIKEKIT-2200IEH
  UTVKIT-2200IEH
  ATVKIT-2200IEH
  DLYWHLKIT-2200IEH
  FRTEXT-2200IEH
  M-CHOCK
  M-VISE
