Repquip Header


Henry Scissor Lift



  6,600 LB. HIGH RISE SCISSORS LIFT
Model Number: HR6K-70

  HR6K-70 Scissor Lift by Henry
  • 6,600 lb lifting capacity
  • Two 23 5⁄8” wide tracks ideal for tire and wheel work, inspections, brake and body work, as well as general service
  • Pneumatic safety lock system
  • Low drive-over height for approach of low vehicles
  • Automatic two position safety lock
  • Double scissor structure with four hydraulic cylinders
  • No special foundation required







  Documents:

SPECIFICATIONS

HR6K-70

Lifting capacity

6,600 lbs.

Width overall

86 1⁄8”

Length overall

82 7⁄16”

Height

4 5⁄16”- 70 7⁄8”

Power pack

2.5 hp / 220 v / 1ph

Shipping weight

1914 lbs.



  Manual
  Specs Sheet


  Easy loading drive-on style scissors lift. Double scissors design with four synchronized cylinders for a low profile and a full 70” lifting height.

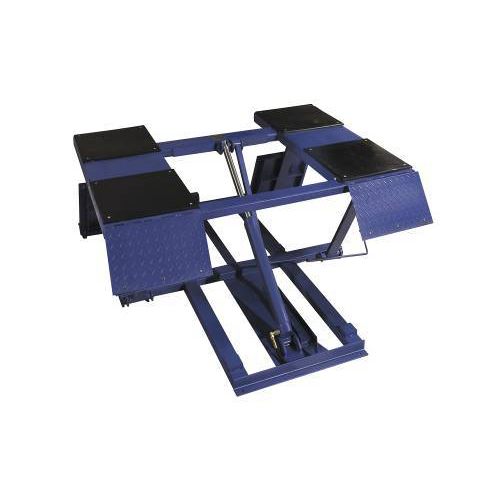

  6,000 lb. Low-Rise Pad Lift

  6,000 lb. Low-Rise Pad Lift Model Number: LR-26-PAD


  • 6,000 lb. lifting capacity
  • Automatic safety locks
  • Low drive-over height for approach of low vehicles
  • High speed motor lifts from 3"- 26" in only 35sec
  • 2 sets of rubber riser blocks







  Documents:
Specifications
Model Number LR-26-PAD
Capacity 6,000 lbs
Overall width 73"
Overall length 86"
Maximum height 26" / 30"
Collapsed height 5"
Motor 1 hp 110v
Weight 1012 lbs


  Manual
  Specs Sheet





  Easy frame lifting on padded runways. Great for wheel and brake work, tire and wheel changing as well as new car preparation.





  6,000lb Portable Mid-Rise Frame Lift

  6,000lb Portable Mid-Rise Frame Lift Model Number:  MR6K-38


    • 6,000lb. lifting capacity
    • Automatic double safety lock system
    • 38" working height
    • 4" drive-over height for approach of low vehicles
    • Wheel kit and rubber riser blocks standard
    • Portable trolley supports pump and moves lift










  Documents:

Specifications:



Model Number

MR6K-38

Capacity

6,000lbs

Overall width

76.5"

Overall length

77"

Track length

57.75"

Maximum lifting height

38"

Collapsed height

4"

Motor

1 hp 110v

Weight

1133 lbs








  Manual
  Specs Sheet




  Mid-rise models lift cars, vans and light-duty trucks. They are ideal for tire, wheel and brake related repairs, collision repair work and new car preparation.



  6,000 lb. Mid-Rise Scissors Lift

  6,000 lb. Mid-Rise Scissors Lift Model Number: MR6K-48


  • 6,000lb lifting capacity
  • Portable trolley supports pump and moves lift
  • Twin hydraulic cylinders
  • Easily adjustable sliding radius arms
  • Automatic two position safety lock.
  • Swivel pads and drop-in height adapters standard






  Documents:
Specifications
Model Number MR6K-48
Capacity 6,000 lbs
Overall width 39 5/8" / 65"
Overall length 96.5"
Maximum height 48.5 / 54"
Collapsed height 4.75"
Motor 1 hp 110v
Weight 950 lbs


  Manual
  Specs Sheet

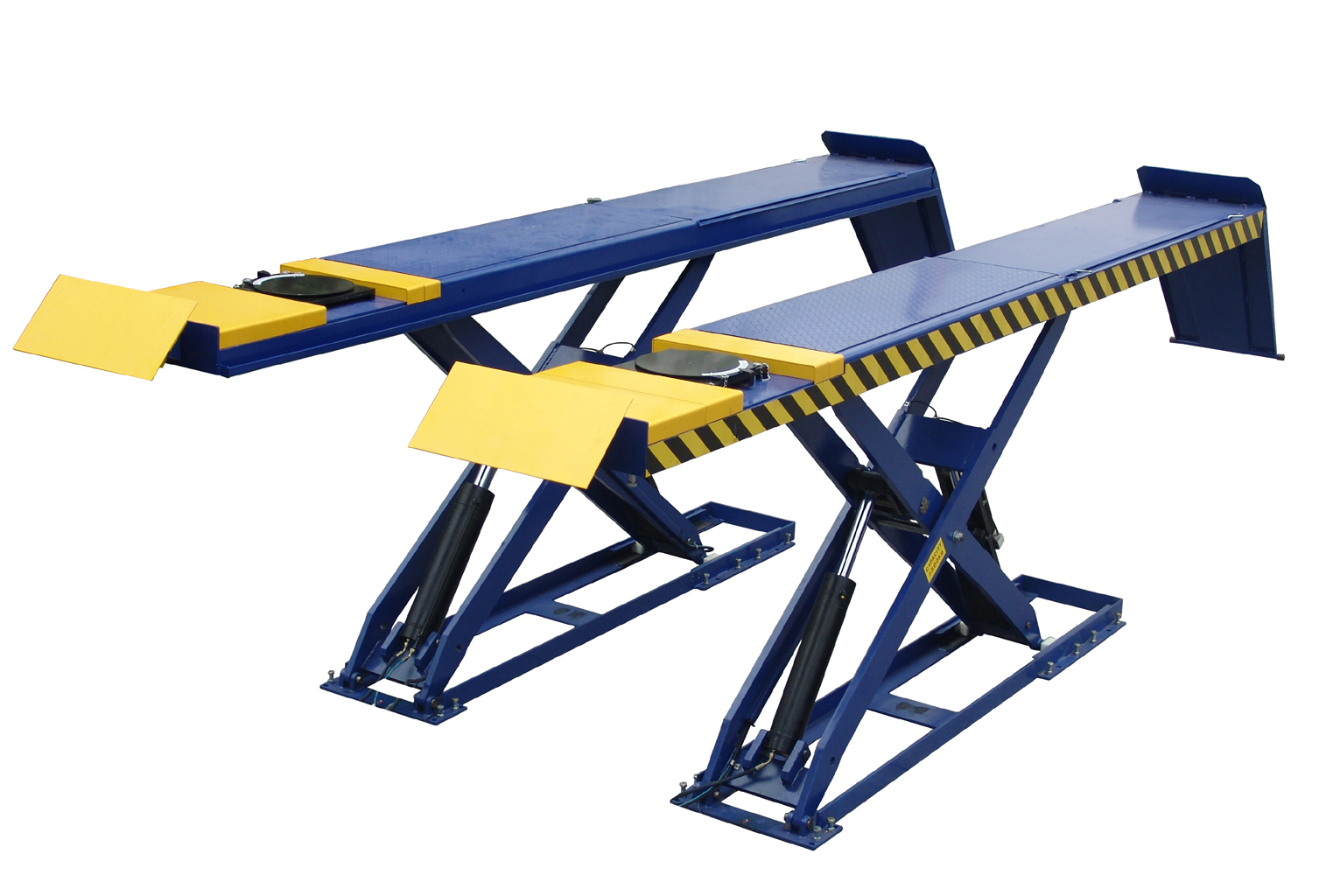

  12,000 lb. capacity scissors alignment lift

  12,000 lb. capacity scissors alignment lift Model Number: SL-12K-A


  • 12,000 lb lifting capacity
  • True scissors design
  • complete access to all wheel alignment procedures
  • Wide 25" tracks
  • Automatic leveling locks
  • Free mounting hardware
  • Powder-coated paint finish

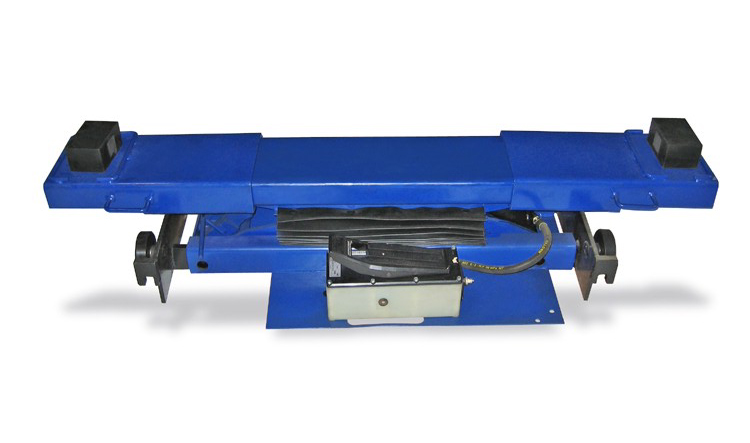

  •  Optional 6,600lb. cap low profile rolling jack







  Documents:

Specifications

Model Number SL-12K-A
Lifting Capacity 12,000 lbs
Overall Length 248 7/8"
Overall Width 83 1/2"
Wheel Base (4wheel) 84"-170"
Wheel Base (2wheel) 183"
Slip Plate Length 75"
Lifting Height 73 5/8"
Lowered Height 7 1/2"
Runway Width 25"
Power Pack 2 hp 220/230vac 20a


  Manual
  Specs Sheet


  Options:

  lift





  This is the perfect alignment rack. A true scissors style lift with no under vehicle obstructions, multiple turntable cut-outs and four powerful cylinders. The SL-12K-A is designed for years of efficient, trouble-free service.
