Henry Storage Service Lifts



  FP9K-DX-XLT

  FP8K-DS-XLT Model Nubmer FP9K-DX-XLT

  8,000 lbs. capacity
High Quality Storage / Parking Lift
Extended Runway Length & Drive-Thru Width
Extended Runway Clearance & Lifting Height
Slack-Cable / Safety Device System
Internal Lock Ladder design
Non-skid Diamond Plate Runways
Adjustable Lock Ladder leveling
Single Point, Manual Lock release
Powder coat finish
Steel approach ramps
INCLUDED Poly Caster Kit
INCLUDED 3ea Drip Trays
INCLUDED Jack / Tool Tray








  Documents:
Specifications: FP9K-DX FP9K-DX-XLT


•LiftingCapacity:

8,000lbs

8,000lbs

•LiftingHeight:

74.8”

. 82.3”

•OverallLengthw/Ramps:

207.3”

225.5”.

•OverallLegthw/NoRamps:

175.5”

190.7”

•OverallWidth:

103.5”

109.4”

•RunwayTreadWidth:

18.7”

18.7”

•RunwayLength:

165.5”

180.5”

•RunwayHeight:

4.3”

4.3”

•ColumnHeight:

86”

94”

•ClerancebetweenColumns:

94.4”

100.3”

•ClearancebetweenRunways:

37.2”

42.2”

•OutsideRunwaytoOutsideRunway:

74.8”

80.7”

•CleranceUnderRunways:

70”

78”

•DriveThruWidth:

80”

87.2”

•LockingPositions:

10

12

•BasePlateSize:

10”x12”

10”x12”

•Power:

110V-15Amp/1PH

110V-15Amp/1PH

•ShipWeight:

1,695lbs

1,805lbs



  Specs
Manual













  FP8K-DS-XLT

  FP8K-DS-XLT Model Number: FP8K-DS-XLT


  • 8,000 lb lifting capacity
  • Carriages completely enclosed for safety
  • Redundant ladder lock safety system with "auto engage" locking bar in the event of cable failure
  • Extra large slider blocks for added stability
  • 10 lock positions
  • Aircraft quality cables rated at 14,500 lbs
  • 18" wide runways formed with one-piece 3/16" non-skid diamond plate
  • Easy operation: Lock release handle located near power unit
  • Large 3" diameter cylinder
  • Many options available!




  Documents

  Specs

  Manual


Specifications

FP8K-DS

FP8K-DS-XLT

Lifting capacity

8,000 lbs.

8,000 lbs.

Overall length with ramps

207 1⁄8”

222 1⁄2”

Overall width

103 1⁄2”

109 1⁄2”

Overall height

86 1⁄4”

96”

Track length

165 1⁄2”

180 1⁄2”

Lifting height

74 3⁄4”

82 1⁄4”

Width between posts

94 1⁄2”

100 5⁄16”

Maximum clearance under tracks

70”

7715⁄16”

Shipping weight

1,640 lbs.

1,700 lbs.












  6,000 LB. SINGLECOLUMN PARKING LIFT Model Number: SP-6K-SS

  Lift Henry Equipment SP-6K=SS
  • 6,000 lb lifting capacity
  • Can handle most vehicles and light trucks
  • Low profile approach ramps for vehicles with low ground clearance
  • Lift can be installed to lift from left or right side
  • Minimal footprint allows for multiple installations
  • Low post height allows for low ceiling residential installations
  • Commercial grade hydraulic cylinder and heavy duty leaf chain
  • Reliable Duro electric/hydraulic cylinder






  SP-6K-SS Single column Parking lift


SPECIFICATIONS

SP-6K-SS

Lifting capacity

6,000 lbs.

Undercar clearance

77 4⁄25”

Height overall

110 1/4”

Width overall

112 5⁄8”

Length overall

188"18 7⁄8”

Runway width Runway length

152” (without ramp)

Approach ramp length

31”

Clearance between runways

42 1⁄2”

Power supply

110 vac DURO lectric /hydraulic pump


  Documents:
  Manual
  Specs Sheet






Now you can double your parking space. Safe, easy to use parking lift takes up minimal space yet doubles your parking.





  TP6K-SS 6,000 LB. COMMERCIAL GRADE PARKING LIFT

  Henry Storage Lift TP6K-SS Model Number:TP6K-SS


  • 6,000 lb lifting capacity
  • Standard two post chain-over cylinder operation
  • Solid platform for very easy parking
  • Hand held pendant control for raising and lowering
  • Safety latches with electronic limit switches
  • Electronic solenoid lowering valve (built into power unit)
  • Duro power unit 220v / 2.2HP
  • Chain equalization for superior stability
  • 6,000lb capacity






  Documents:

SPECIFICATIONS:

TP6K-SS

Capacity

6,000 lbs.

Lifting height

85”

Width overall

104”

Height overall

134”

Power pack

Duro 2.5hp 220vac

Shipping weight

2,700 lbs.



  Manual
  Specs Sheet


  This is a commercial grade, two post parking lift with a large platform for easy-on / easy-off operation.

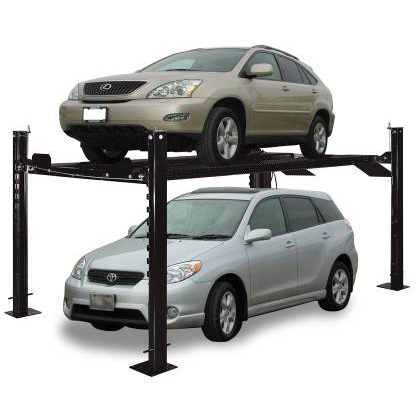

  FP7K-XLT

  FP7K-XLT Model Number: FP7K-XLT

  • 7,000 lb lifting capacity
  • 20" longer and 10" more under-car clearance than our standard model
  • Carriages completely enclosed for safety
  • Aircraft quality cables rated at 14,500 lbs
  • 18" wide runways formed with one-piece 3/16" non-skid diamond plate
  • Easy operation: Lock release handle located near power unit
  • Large 3" diameter cylinder
  • Many options available!





  Documents

  Spec Sheet

  Maunal





  FP8K-DX

  spfx8dx Model Number: FP8K-DX

  • 8,000 lbs. capacity
  • High Quality Storage / Parking Lift
  • Slack-Cable / Safety Device System
  • Internal Lock Ladder design
  • Non-skid Diamond Plate Runways
  • Adjustable Lock Ladder leveling
  • Single Point, Manual Lock release
  • Powder coat finish
  • Steel approach ramps
  • INCLUDED Poly Caster Kit
  • INCLUDED 3ea Drip Trays
  • INCLUDED Jack / Tool Tray






  Docuemnts;

  Specs


Specifications





LiftingCapacity

8,000lbs.

8,000lbs

LiftingHeight

74.8”

82.3”

:OverallLengthw/Ramps

207.3”

225.5”

OverallLegthw/NoRamps:

175.5”

190.7”

OverallWidth:

103.5”

109.4”

RunwayTreadWidth

18.7”

18.7”

RunwayLength

165.5”

180.5”

RunwayHeight:

4.3”

4.3”

ColumnHeight

86”

94”

ClearancebetweenRunways::

 94.4”

100.3”

ClerancebetweenColumns:

37.2”

42.2”

OutsideRunwaytoOutsideRunway

74.8”

80.7”

CleranceUnderRunways:

70”

78”

DriveThruWidth

80”

87.2”

LockingPositions

10

12

BasePlateSize

10”x12”

10”x12”

Power

110V-15Amp/1PH

110V-15Amp/1PH

ShipWeight

1,695lbs

1,805lbs























  7,000 lb Storage/Service Lift

  Storage lift Model Number: FP7K

  • 7,000 ln lifting capacity
  • Carriages completely enclosed for safety
  • Aircraft quality cables rated at 14,500 lbs
  • 18" wide runways formed with one-piece 3/16" non-skid diamond plate
  • Easy operation: Lock release handle located near power unit
  • Large 3" diameter cylinder
  • Many options available!







  Documents:
Specifications
Model Number FP7K
Overall length 171"
Overall width 112
Overall height 84"
Track length 160"
Track width 18.5"
Width between posts 99"
Maximum clearance 65"
Weight 1,485lbs


  Manual
  Specs Sheet



  Options:

  Deck 7,000 lb. / 9,000 lb. capacity and large 3” cylinder,
one-piece diamond-plate runways and scratch-resistant powder coat paint.
Storage Lift FP7K-aar






  Storage Lift fp7Kcst   fp7kdt





  7,000 lb. Storage/Service Lift XLT

  Storage lift Model Number: FP7K-XLT


  • 7,000 ln lifting capacity
  • 20" longer and 10" more under-car clearance than our standard model
  • Carriages completely enclosed for safety
  • Aircraft quality cables rated at 14,500 lbs
  • 18" wide runways formed with one-piece 3/16" non-skid diamond plate
  • Easy operation: Lock release handle located near power unit
  • Large 3" diameter cylinder
  • Many options available!







  Documents:
Specifications
Model Number FP7K-XLT
Overall length 190"
Overall width 112"
Overall height 92"
Track length 180.75"
Track width 18.5"
Width between posts 100"
Maximum clearance 78"
Weight 1,680 lbs


  Manual
  Specs Sheet




  7,000 lb. / 9,000 lb. capacity and large 3” cylinder, one-piece diamond-plate runways and scratch-resistant powder coat paint.




  9,000lb capacity Storage / Service Lift

  Storage Lift Model Number: FP9K

  • 9,000 ln lifting capacity
  • Carriages completely enclosed for safety
  • Aircraft quality cables rated at 14,500 lbs
  • 18" wide runways formed with one-piece 3/16" non-skid diamond plate
  • Easy operation: Lock release handle located near power unit
  • Large 3" diameter cylinder
  • Many options available!








  Documents:
Specifications
Model Number FP9K
Overall length 175"
Overall width 105.38"
Overall height 82"
Track length 165"
Track width 18.5"
Width between posts 94"
Maximum clearance 73"
Weight 1,485lbs


  Manual
  Specs Sheet




  7,000 lb. / 9,000 lb. capacity and large 3” cylinder, one-piece diamond-plate runways and scratch-resistant powder coat paint.




  8,000lb. capacity Deluxe Series Storage/Service Lift

  FP8K-DS Model Number: FP8K-DS


  • Carriages completely enclosed for safety
  • Redundant ladder lock safety system with "auto engage" locking bar in the event of cable failure
  • Extra large slider blocks for added stability
  • 10 lock positions
  • Aircraft quality cables rated at 14,500 lbs
  • 18" wide runways formed with one-piece 3/16" non-skid diamond plate
  • Easy operation: Lock release handle located near power unit
  • Large 3" diameter cylinder
  • Many options available!









  Documents:
Specifications:
Model Number FP8K-DS
Overall length with ramps 207 1/8"
Overall width 103 1/2"
Overall height 86 1/4""
Track length 165 1/2"
Lifting height 74 3/4"
Width between posts 94 1/2"
Maximum clearance 70"
Weight 1,680 lbs
Lifting capacity 8,000 lbs.


  Manual
  Specs Sheet




  Options

  FP8K-DS-j35s JackTray Caster-Kit




    Jack Tray Caster kit

  aliminium deck   Aluminum-Ramp





  Aluminum deck   Aluminum ramps

  Smooth operation and good looks make a great first impression but it’s the safety features and durability that makes the “Deluxe Series” the best choice in storage/service lifts.





  8,000lb capacity Deluxe Series Storage/Service Lift XLT

    Model Number: FP8K-DS-XLT

  FP8K-DS
  • Carriages completely enclosed for safety
  • Redundant ladder lock safety system with "auto engage" locking bar in the event of cable failure
  • Extra large slider blocks for added stability
  • 10 lock positions
  • Aircraft quality cables rated at 14,500 lbs
  • 18" wide runways formed with one-piece 3/16" non-skid diamond plate
  • Easy operation: Lock release handle located near power unit
  • Large 3" diameter cylinder
  • Many options available!








  Options

Specifications:
Model Number FP8K-DS-XLT
Overall length with ramps 222 1/2"
Overall width 109 1/2"
Overall height 96"
Track length 180 1/2"
Lifting height 82 1/4"
Width between posts 100 5/16"
Maximum clearance 77 15/16"
Weight 1914lbs
Lifting capacity 8,000 lbs.

  FP8K-DS-j35s





  Documents:

  Manual
  Specs Sheet

  Smooth operation and good looks make a great first impression but it’s the safety features and durability that makes the “Deluxe Series” the best choice in storage/service lifts.





  THE PERFECT ADD-ON FOR ANY STORAGE / SERVICE LIFT

  SJ355 3,500lb capacity sliding hydraulic jack
The expandable rails adjust to fit any size storage lift. And the adjustable lifting arms extend to meet all standard lifting points. A great way to do wheel and brake work.
Height adapters included.








Specifications:



Capacity

3,500 lbs

Width between tracks

30 1/2” - 46”

Distance between pads

36” – 63”

Lifting Pad Height 1

3/8”

Short Height Adapter

1 1/4”

Tall Height Adapter

5”

Raised Height

11”

with Tall Adapter

16”

Shipping Weight

325 lbs
