Henry Two Post Lifts


  Two Post Lift


  TP9KACX / TP9KSCX /TP9KFX

  TP9KACX / TP9KSCX Model : TP9KACX / TP9KSCX/ TP9KFX


  • 9,000 lbs. capacity
  • High Quality Lifts
  • Asymmetric / Clear Floor design (TP9KACX)
  • Symmetric / Clear Floor design (TP9KSCX)
  • Chain Drive
  • Dual Point Lock release
  • Saddle Pad Adapters included (1 pair)
  • Powder coat finish
  • New! Single Piece Column construction
  • New! Padded 'Shut-Off' Bar w/ Kill Switch
  • New! Low Profile 'drop-in' Swivel Pads w/ 1-1/2" adjustable height
  • New! 4ea Stackable 1-3/8" & 4" 'drop-in' Height Adapters
  • New! Reduced overall Width w/ front-side mounted Power Unit
  • New! Internal Hose Routing w/ integrated Hose Guards
  • New! Rubber Door Guards







  Documents

  Specs

  Manual




Specifications: TP9KACX TPKSCX TP9KFX


•LiftingCapacity:

9000lbs 9000lbs 9000lbs

•Height Overall

142.9" 142.9" 111.9"

•Width Overall w/Power Unit

138" 138" 134.6"

•Max Lifting Height

72" 72" 72"

•Width Between Columns

113.6"

113.6" 110.4"

•Min Pad Height

4" 4" 4"

•Drive Thru Clearnace

96" 104" 101"

•Lifting Speed

50S 50S 50S

•Asymmetric / Symmetric

Asymmetric Symmetric Symmetric

•Clear Floor / Floor Plate

Clear Floor Clear Floor Floor Plate

•Front Arm Reach - Min / Max

29" - 41" 31" - 45" 31" - 45"

•Rear Arm Reach - Min / Max

37" 57" 31 - 45" 31" - 45"

•Max Load Per Arm

2250 lbs 2250lbs 2250 lbs

•CAble Diameter

3/8" 3"/8" 3/8"

•Column Size

7.25" x 10.87" 7.25" x 10.87" 7.25" x 10.87"

•Column Steel Thickness

5mm 5mm 5mm

•Carriage Steel Thickness

5mm 5mm 5mm

•Arm Steel Thickness

6mm 6mm 6mm

•Power

220v - 20amp, 1 PH 220v - 20amp, 1 PH 220v - 20amp, 1 PH

•Ship Weight

1370 lbs 1370 lbs 1265 lbs



























  TP9KFX

    Model Number: TP9KFX


  • 9,000 lbs. capacity
  • High Quality Lift
  • Symmetric / Floor Plate design
  • Chain Drive
  • Dual Point Lock release
  • Saddle Pad Adapters included (1 pair)
  • Powder coat finish
  • New! Low Profile 'drop-in' Swivel Pads w/ 1-1/2" adjustable height
  • New! 4ea Stackable 1-3/8" & 4" 'drop-in' Height Adapters
  • New! Reduced overall Width w/ front-side mounted Power Unit
  • New! Internal Hose Routing w/ integrated Hose Guards
  • New! Rubber Door Guards







  Documents:


  Specs

  Manual
Specifications: TP9KACX TPKSCX TP9KFX


•LiftingCapacity:

9000lbs 9000lbs 9000lbs

•Height Overall

142.9" 142.9" 111.9"

•Width Overall w/Power Unit

138" 138" 134.6"

•Max Lifting Height

72" 72" 72"

•Width Between Columns

113.6"

113.6" 110.4"

•Min Pad Height

4" 4" 4"

•Drive Thru Clearnace

96" 104" 101"

•Lifting Speed

50S 50S 50S

•Asymmetric / Symmetric

Asymmetric Symmetric Symmetric

•Clear Floor / Floor Plate

Clear Floor Clear Floor Floor Plate

•Front Arm Reach - Min / Max

29" - 41" 31" - 45" 31" - 45"

•Rear Arm Reach - Min / Max

37" 57" 31 - 45" 31" - 45"

•Max Load Per Arm

2250 lbs 2250lbs 2250 lbs

•CAble Diameter

3/8" 3"/8" 3/8"

•Column Size

7.25" x 10.87" 7.25" x 10.87" 7.25" x 10.87"

•Column Steel Thickness

5mm 5mm 5mm

•Carriage Steel Thickness

5mm 5mm 5mm

•Arm Steel Thickness

6mm 6mm 6mm

•Power

220v - 20amp, 1 PH 220v - 20amp, 1 PH 220v - 20amp, 1 PH

•Ship Weight

1370 lbs 1370 lbs 1265 lbs




























  Tp12KC-D

Model Number:  TP12KC-DE




  • Long lasting, direct drive cylinders

  • Extra long carriage protects sliders from wear

  • Padded overhead cut-off bar

  • Single point pneumatic lock release

  • Fully gusseted oversized base plates

  • Uncertified version, TP12KC-D, still available














Specifications:
Model Number TP12KC-DE
Capacity 12,000 lbs.
Lifting height 5.5" - 72"
with adapters 79.625"
Height overall 165"
Width between columns 122"
Drive through 109"
Width overall 151.125"
Arm extension 37.5" - 57"
Power pack 2hp 220vac
Shipping weight 2300 lbs.


  Documents:

  Manual
  Specs Sheet






  Big. Strong. Dependable. The TP12KC-DE's fully gussetted oversized base plates and big lifting arms with reinforced swivel pin holes
promise years of reliable service.




  7,000lb capacity Two Post Lift

  2 post lift 7kac Model Number: TP7KAC



•   Model Number:TP7KAC
•   7,000 lb lifting capacity
•   Asymmetric design
•   Dual cylinders with low friction chain rollers
•   Low profile automatic arm restraints
•   3 Stackable drop-in height adapters 1.25", 2", 3"
•   Free mounting hardware
•   Powder-coated paint finish
•   Electric override automatic safety shut-off








  Documents:


Specifications:


Model Number TP7KAC
Capacity 7,000 lbs
Lifting speed 50 seconds
Motor rating 2HP 220V 20A
Height overall 142"
Lifting height 71.65"
Low pad height 4.7"
Drive thru 108"
Shipping weight 1188 lbs

  Manual
  Specs Sheet







  Getting back to Basics– If all you need is a 7,000 lb. capacity lift… Why pay for more? Save money and still get all the features found in larger lifts.

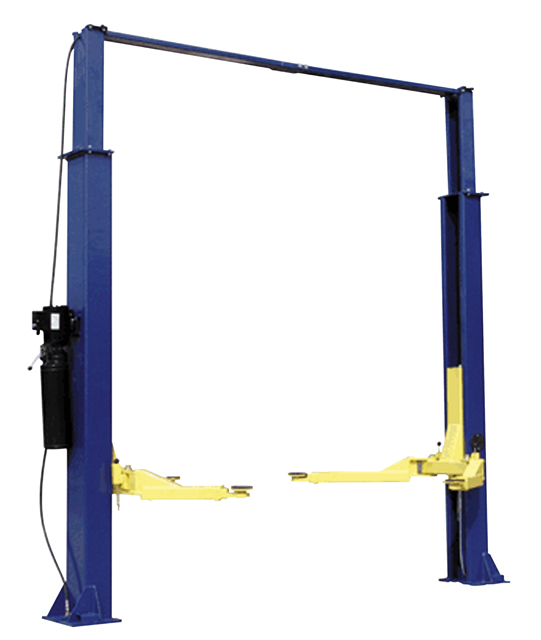

  9,000 lb. Two Post Asymmetric Lift

  9kac Model Number: TP9KAC


  • 9,000 lb lifting capacity
  • Asymmetric design
  • Dual cylinders with low friction chain rollers
  • Low profile automatic arm restraints
  • Stackable drop-in height adapters
  • Free mounting hardware
  • Powder-coated paint finish
  • Electric override automatic safety shut-off








  Documents:
Specifications

tp9kac

Click Image to view larger

Model Number TP9KAC
Capacity 9,000 lbs
Lifting speed 50 seconds
Motor rating 2HP 220V 20A
Width overall 134"
Height overall 142"
Lifting height 70.5"
Lifting height (with ext.) 75.5"
low pad height 4.5"
Width between columns 109"
Drive thru 92"
Shipping weight 1500 lbs Cradle Adapters


  Manual
  Specs Sheet











  9,000 lb. capacity lifts. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system
and everything you’d expect from a quality lift.

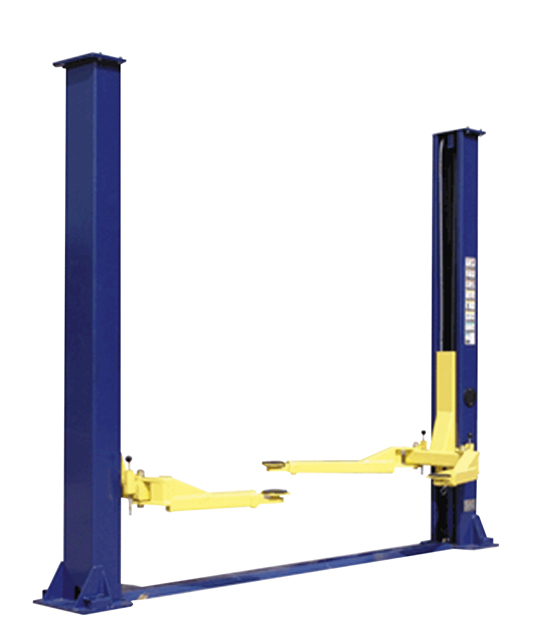

  9,000 lb. Two Post Symmetric Lift

  9kac Model Number: TP9KF


  • 9,000 lifting capacity
  • Symmetric design
  • Dual cylinders with low friction chain rollers
  • Low profile automatic arm restraints
  • Stackable drop-in height adapters
  • Free mounting hardware
  • Powder-coated paint finish








  Documents:
Specifications
Model Number TP9KF
Capacity 9,000 lbs
Lifting speed 50 seconds
Motor rating 2HP 220V 20A
Width overall 134"
Height overall 111.5"
Drive thru width 92"
Raised height (no ext.) 70.5"
Raised height (with ext.) 75.5"
Low height 4.5"
Shipping weight 1500 lbs


  Manual
  Specs Sheet









  9,000 lb. capacity lifts. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you’d expect from a quality lift.

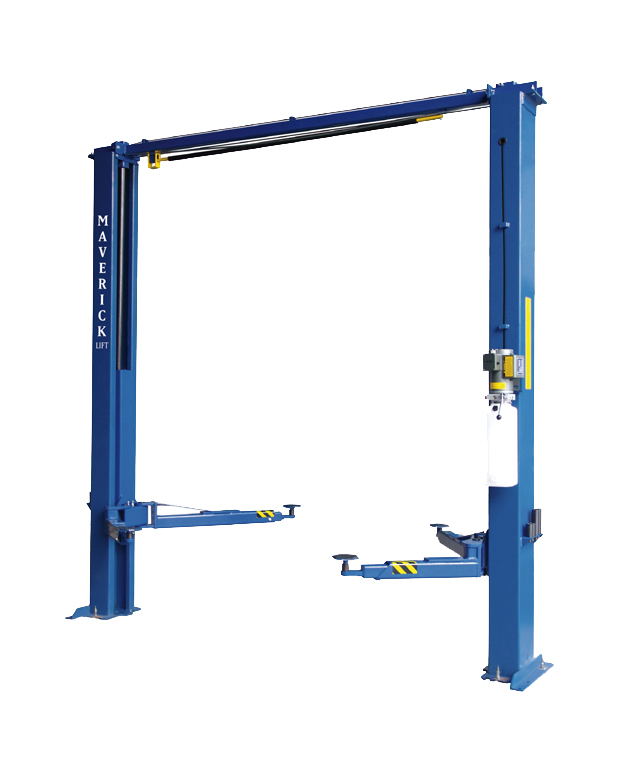

  10,000lb. Capacity asymmetric lift ETL/ALI certified

  lift two post Model Number: TP10KAC-D


  • ETL/ALI certified
  • Dual cylinder direct pull lifting. No chains or roller bearings to wear out.
  • Single piece column. Continuous rolled steel column. No sheet metal.
  • Extra long carriage (44"). Puts less stress on slider blocks
  • Padded cut-off bar. Automatic electric override.
  • Two point lock release.
  • Free hardware.
  • Stackable truck adapters standard.
  • Powder coat paint finish.








  Documents:

Specifications
Model Number TP10KAC-D
Capacity 10,000lbs
Overall Height 141.5"
Overall Width 137.25"
Drive thru clearance 95.75"
Lifting height 71.5"
Lifting height (with ext.) 80.25"
Lowered height 4"
Lifting speed 50 sec
Shipping weight 1,605 lbs

  Manual
  Specs Sheet











  10,000lb. capacity direct drive asymmetric two post lift

  Henry Lift Model Number:TP10KC-DTC



• 30 degree rotated columns for true asymmetric design.
• Triple telescoping arms.
• Dual cylinder direct pull lifting. No chains or roller bearings to wear out.
• Single piece column. Continuous rolled steel column. No sheet metal.
• One-piece cross beam
• Padded override safety rod shut off system.
• Extra long carriage (44"). Puts less stress on slider blocks.
• Cylinder protected by carriage when lowered.
• Stackable truck adapters standard.
• Powder coat paint finish.














Specifications:
Model Number TP10KC-DTC
Capacity 10,000lbs
Overall Height 144"
Overall Width 140"
Lifting height 4" - 70"
Front arm ext. 25 1/2" - 50"
Rear arm ext. 34 1/2" - 73"
Drive through width 95"
Width between columns. 106"
Truck adapters 1 5/8",3",6"
Net weight 1683lbs

  Documents:

  Manual
  Specs Sheet









  A tough 1Ok two post with turned columns for a true asymmetric design.








TP11KC

Model Number: TP11KC-DX



11,000 lb lifting capacity
Direct drive
3 Stage front arms
Bi-Symmetric® - Asymmetric/ Symmetric arm configuration
Symmetric columns
Single point lock release
Low profile arms
Rubber door guards
Spin up pads with stackable truck adapters included, 2" and 4"
Powder coat paint finish









  Documents:


Capacity
HeightOverall
WidthOverallw/PowerUnit
Max.LiftHeight
Min.PadHeight
WidthBetweenColumns
DriveThruClearance
LiftingSpeed
Power
ShipWeight

11,000lbs.
144”
145-1/2”
71”
4”
116”
104”
50S
220V-20Amp-1PH
1,705lbs


  Manual
  Specs Sheet

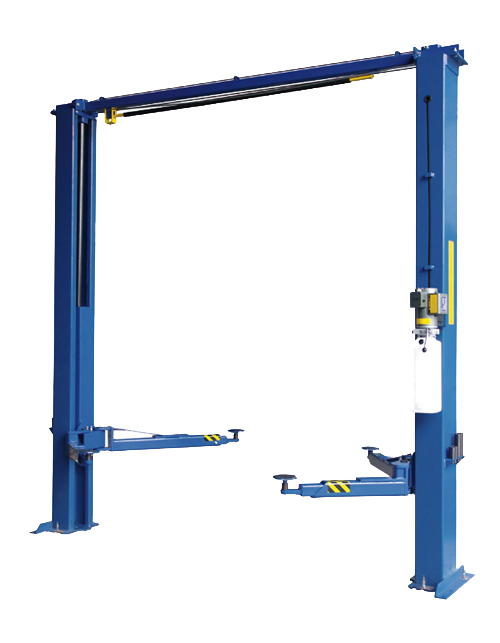

  11,000lb. capacity Direct Drive Asymmetric Lift

  tp11kac TP11KAC-D3



•Dual cylinder direct pull lifting. No chains or roller bearings to wear out.
•Single piece column. Continuous rolled steel column. No sheet metal.
•Extra long carriage (44"). Puts less stress on slider blocks
•Padded cut-off bar. Automatic electric override.
•Single point lock release.
•UNIQUE TRIPLE TELESCOPING ARMS
•Free hardware.
•Stackable truck adapters standard.
•Powder coat paint finish.









  Documents:
Specifications:
Model Number TP11KAC-D3
Capacity 11,000 lbs
Lifting speed 50 seconds
Motor rating 2HP 220V 20A
Lifting height 4 3/8" - 68 1/2"
Width overall 137 1/8"
Height overall 145 5/8"
Shipping weight 1631 lbs
Long arm ext. 33 1/2" - 72 1/2"
Short arm ext. 23 1/4" - 47 1/2"


  Manual
  Specs Sheet








  Check out the great features on the TP11KAC-D3 and find out why it’s becoming our most popular lift. Single point safety release, direct drive, padded cut-off bar, and Triple Telescoping Arms that can reach the most difficult lifting points will make this the hardest working lift in your garage.






  11,000 lb. Two Post Asymmetric Lift

  lift two post Model Number: TP11KAC

  • Dual cylinders with low friction chain rollers
  • Automatic arm restraints
  • Electric override. Auto safety shut-off
  • Powder coated paint finish









Specifications
Model Number TP11KAC
Capacity 11,000 lbs
Lifting speed 50 seconds
Motor rating 2HP 220V 20A
Lifting height 70.25"
with adapters 76"
Low pad height 4.5"
Width overall 137"
Width between columns 110.5"
Drive thru 90.5"
Height overall 141" or 145.5"
Shipping weight 1950 lbs

  Documents:

  Manual
  Specs Sheet









  A 11,000 lb. capacity two post asymmetric clear floor style lift featuring adjustable overall height to fit in more service bays and a single point safety release for easy lowering.

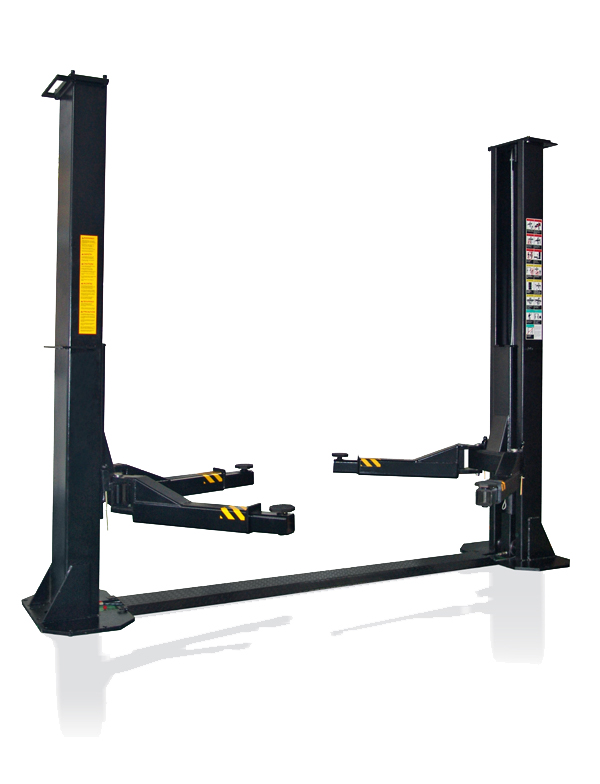

  Heavy-Duty 12,000lb. Capacity Two Post Lift



lift tpkf

Model Number: TP12KF


  • Dual 3" cylinders with low friction chain rollers
  • "Big Foot" base plates for extra stability
  • Low profile arm restraints
  • Durable powder coat paint finish
  • Free hardware
  • Powder coat paint finish








  Documents:
Specifications

Model Number

TP12KF

Capacity

12,000 lbs

Lifting speed

60 sec

Power Pack

2hp 220vac

Lifting height

80.5"

with adapters

87"

Low pad height

9"

Height overall

122"

Width overall

150"

Width between columns

121.5"

Drive through

108"

Weight

2474lbs



  Manual
  Specs Sheet










  A Texas style two post floor plate lift with 12,000 lb. lifting capacity, large twin 3” cylinders with low friction chain rollers, and a “big foot” base plate for extra stability.





  12,000lb capacity Two Post Clear Floor Lift





  tp12kcdmr Model Number: TP12KC-D



• Direct drive high pressure cylinders
• Extra long (48") carriage for less wear on sliders
• Padded overhead cut-off bar
• Single point pneumatic safety lock release
• Drop in adapters standard
• Powder coated paint finish
























Documents:

Specifications:



Model Number

TP12KC-D

Capacity

12,000 lbs.

Lifting height

5.5" - 72"

with adapters

79.625"

Height overall

165"

Width between columns

122"

Drive through

109"

Width overall

151.125"

Arm extension

37.5" - 57"

Power pack

2hp 220vac

Shipping weight

2235 lbs.







  Manual





Specs Sheet


















































  Big. Strong. Dependable. The fully gusseted oversized base plates on the TP12KC-D and the big lifting arms with reinforced
swivel pin holes, promise years of reliable service.

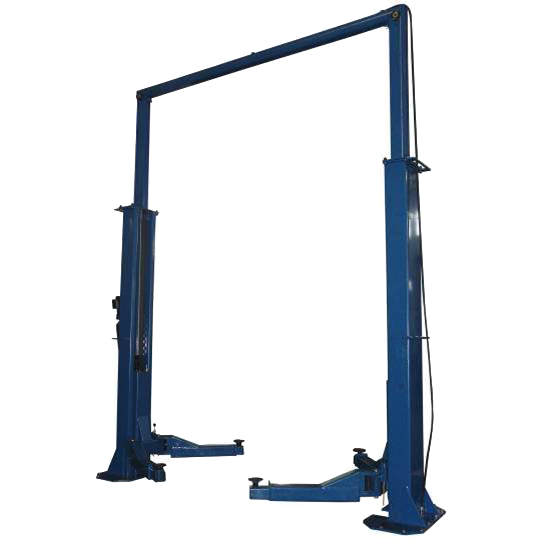

  Heavy Duty 15K Two Post Lift



15 kac

Model Number: TP15KC-K


  • Dual 3" cylinders with low friction chain rollers
  • "Big Foot" base plates for extra stability
  • Automatic electric override
  • Free hardware
  • Powder coat paint finish








  Documents:
Specifications
Model Number TP15KC-K
Capacity 15,000 lbs
Lifting speed 60 sec
Power Pack 2hp 220vac
Lifting height 80.5"
with adapters 87"
Low pad height 9"
Height overall 180"
Width overall 150"
Width between columns 121.5"
Drive through 108"
Weight 2474lbs


  Manual
  Specs Sheet










  A Texas style two post lift with 15,000 lb. lifting capacity, large twin 3” cylinders with low friction chain rollers, and a “big foot” base plate
for extra stability.






  Back Henry Tire Changer
  Back Henry Lifts
  Back Henry Wheel Balancers
  Back Henry Shop Press
  Backk Henry Miscellaneous Equipment
  Back Repquip Home
