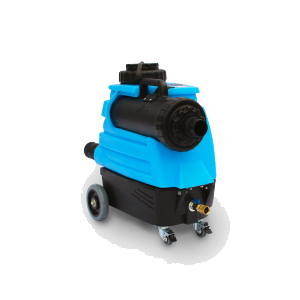

Mytee Carpet and Facilites 7303 Air Hog™ Vacuum Booster




Here’s a Mytee® product that’s about to become an indispensable part of your cleaning arsenal – the 7303 Air Hog™ Vacuum Booster. It boosts the CFM of any extractor with a dual 2-stage or single 3-stage or higher vacuum motor. But it’s actually much more than just a vacuum booster.

With this specially designed Air Hog™ model, you add 145″ water lift to your existing extractor for unmatched performance on long hose runs, giving you increased suction, leaving carpets dryer. This versatile unit can also be used as a stand-alone extractor with your Mytee T-REX™ or carpet wand, or you can “daisy chain” multiple boosters to complete bigger jobs more efficiently, without unnecessary downtime.

IMPORTANT: Do not use with a truckmount.






      Features


7303 mytee



Features:

  • 115 CFM stand-alone; each booster added “daisy-chain style” to a job increases the total CFM by 115
  • 3-stage vacuum motor
  • 145″ of water lift
  • Pumps out at 3.3 GPM
  • Mytee’s® Lint Hog™ protects its pump and any connected extractor pump from damage-causing debris
  • Float shut-off valve, auto pump-out (cap when not in use)
  • Durability in roto-molded polyethylene housing that resists rusting and denting

Includes:

  • Mytee’s® Lint Hog™ stainless steel filter
  • Built-in and additional Cuff-Lynx™
  • 25′ power cord
  • 6″ non-marking wheels
  • 2″ locking casters

Water Resistant Switches
Water resistant switches add protection against dust and water intrusion.

Locking Casters
Locking casters provide stabilization and prevents any unwanted movement.

Lighted Power Cords
Lighted power cords indicator plug glows when the cord has power.

Cuff-Lynx™ Ready
Cuff-Lynx™ provide an easy connection for vacuum hoses.
















  Technical

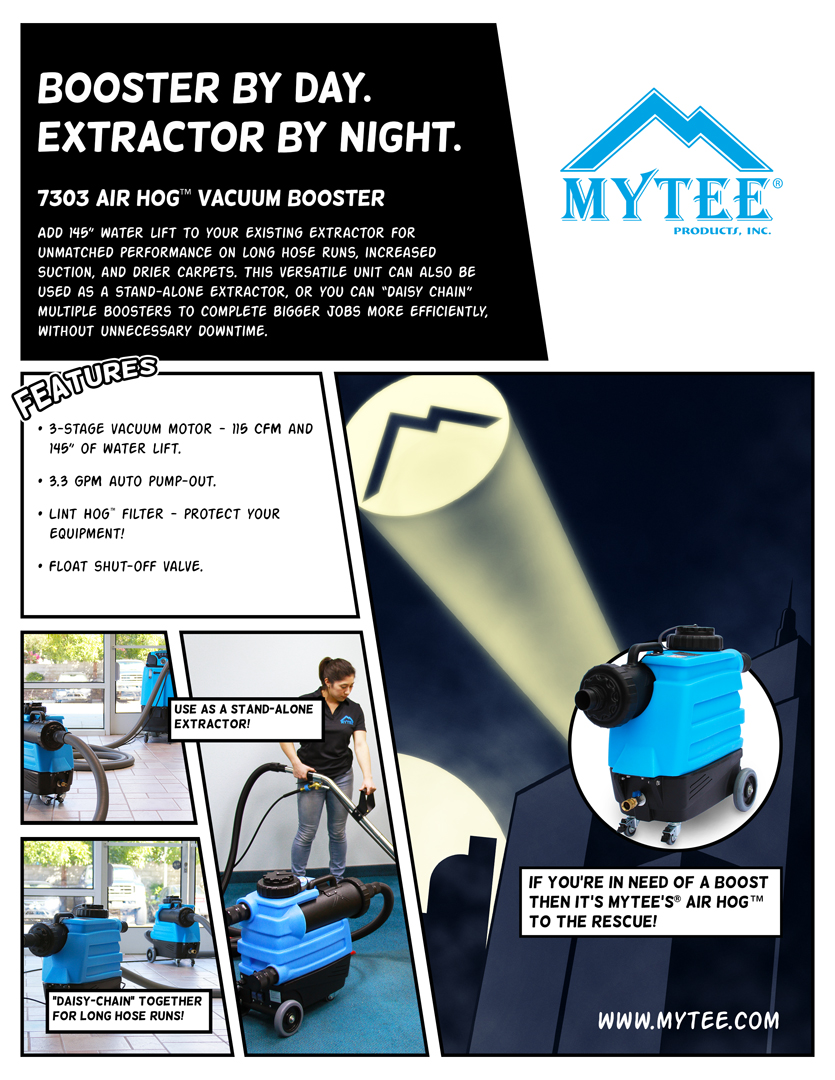

  Brochure

  User Manual

  Wiring Diagram

  Specifications


Tank

4-gallon

Vacuum motor

Single 3-stage HP

CFM

115

H20

145"

Pump

Diaphragm

GPM

3.3

Wheels

6"

Casters

2" dual locking

Cord

Single 25' 16/3

Amp Draw

14

Comes with

On-board Lint Hog™ debris filter, 2” Cuff-Lynx™ and vacuum float shut-off valve

Product Weight

46 lbs.

Shipping Weight

55 lbs.

Product Dimensions

29 1/2" x 12 1/2" x 24 1/2"

Shipping Dimensions

30" x 13 3/4" x 26"
