RTI Filtration Repair Kits & Accessories


  Rebuild Those Old Dryers with RTi Repair Kits at Unbeatable Prices!

  RTi-T10-RK
  Rti T10 RK Includes:
▪ 10 lbs. Dust Resistant Activated
Alumina Desiccant
▪ 1 Replacement Coalescing Filter
▪ 1 Replacement Sight Glass with
Moisture Indicator Paper










  Dryer SystemT10 Repair Kit

  RTi10D500-RK
  RTi D500RK Includes:
▪ 10 lbs. Dust Resistant Activated
Alumina Desiccant
▪ 1 Replacement Sight Glass with
Moisture Indicator Paper
▪ 1 Replacement Pre-Filter Element
AND
▪ 1 Replacement Coalescing Filter**
(**Item Not Included in Original MFR’s Kit;
Ours is FREE!)










  RTi-T10-UG
  rtI 10uG *  Adds a 1/2" RTi afterfilter (shown) to our rebuild kits

*  Eliminates desiccant contamination of your paint












  RTi-D500-UG
  RTi D500UG
  • Adds a 1/2: RTi afterfilter (shown) to our rebuild kits
  • Eliminates desiccant contamination of your paint











  MR-1
  mr1 • Mini paint gun regulator
• High flow air design
up to 30 scfm
• Ultra light-weight design
• Diaphragm design provides constant pressure
• Chrome gauge and swivel fitting











  MR-1-12
  mR112 • 12 Mini paint gun
regulators
• Specially designed
display box
• Ideal for counter top













  ED-2-4 Electronic Drain
  Ed24 • Electronic timer drain, with indicator lights
• Automatically drains water from tank
• Solid brass ball valve with stainless strainer to protects valve

APPLICATIONS:
Use on any air reservoir tank, air/water separators, air filters, air dryers, or drip legs
whenever condensed water removal is necessary. Reliance on a manually drained system
often leads to water contamination of your critical air driven equipment or machinery.
Adjustable Drain Interval - 0.5 to 45 min.
Adjustable Drain Span - 0.5 to 10 sec.
On/Off Indicator Lights
Ball Valve Strainer - Protects Valve
from Heavy Contaminants.













  FEATURES:
Stainless Steel Strainer Element -
Easy to Remove and Clean
Mounts to ¼”Male or ½”NPT Female
Drain Lines/Ports, in Any Position.
Test Button - Allows Manual Activation
ED-2-4
Zoom view of timer










  TD5
  td5
  • Drip leg automatic drain
  • Eliminates the daily manual draining of tank/drip legs
  • 1/2" NPT inlet on top with filter screen to protect drains

The TD5 Tank Drain can be effectively used at the bottom of any drop leg to remove the water that builds up in many piping systems, prior to the air entering the filter/dryer system that is used to polish your air for your air tools, equipment, or spraying applications.
















  SPECIFICATIONS
• ½”NPT Inlet Port – On Top • Sturdy Non Corrosive Metal Housing
• Easy to Remove and Clean • Manual Drain
• Pipe into Bottom of Compressor Tank • Automatic Drain with ⅛”Outlet Port
• Use for Drip Legs • Inlet Filter Screen Protects Drains
• Ideal for bottom of Drop Legs • (2) Piece Housing w/ O-Ring Seal










  HVHA-35 / HVHA-50

  HVHA35 HVHA 50
  • High volume hose assembly - 35 ft or 50 ft
  • 3/8" diameter solvent resistant hose
  • Includes high volume, quick disconnect















  BK-1Bracket
  BK Bracket
  • Easy to mount design
  • For mounting all of our air filters to a wall

New Stainless Steel Mounting Option

Available for Any RTi Standard Product offered in a 60 CFM Head Size
(Such as Stealth 6950)

Integral Attachment to Head
Rugged 304 Stainless Steel design with
Reinforcing Center Rib for Stiffness
Stainless Steel Screws Mount Bracket to Head
Universal Mount Bracket can be Mounted on Either Side of Head,
So Air Flow can be Either Direction
Mounting Distance from wall is 2 ½“ to Centerline of Ports (pipe).















  RG2
  RG2
  • Multiple outlet design
  • Other multi-port outlet manifold options available
















  Heavy Duty Regulator & Lubricators
  Regulator 1/4" to 1' Heavy Duty Steel Anodized Regulator & Lubricators

Rugged, heavy duty high-flow design
All metal, corrosion-resistant anodized aluminum body
Tee handle knob, relieving type regulator
Chemically resistant Buna N diaphragm Available with ¼”, ⅜”, ½”, ¾”, 1” NPT ports
Gauge included with units














  Download Product Brochure




  PERF Repair & Maintenance Kits
  Perfect Air It is now even easier to maintain RTi PerfecT Air™ systems in your shops with our maintenance and repair kits. They include all you need to keep your units running at their best. Replacement elements should be changed every 6 months, or sooner
depending on the level of usage. These kits are discounted lower than the ‘list price’ of all items to promote proper maintenance of the systems.

PERF-25-MK
PERF-25 Maintenance Kit
Includes:
▪ 3P-060
▪ (2) 3C-060












  PERF-50-MK
PERF-50 Maintenance Kit
Includes:
▪ 3P-090
▪ 3C-090
▪ 3C-060
PERF-25-RK
PERF-25 Repair Kit
(Needed Every 3-5Years to Re-pack Desiccant Towers)
Includes:
▪ 3P-060
▪ (2) 3C-060
▪ (2) D-05
▪ (4) RTi-SF-4
▪ RTI-TP-651
PERF-50-RK
PERF-50 Repair Kit
(Needed Every 3-5Years to Re-pack Desiccant Towers)
Includes:
▪ 3P-090
▪ 3C-090
▪ 3C-060
▪ (3) D-05
▪ (4) RTi-SF-4
▪ RTI-TP-651

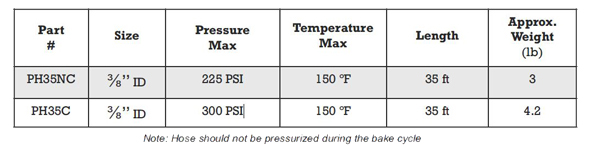

  High Flow Fitting Hoses PH35 NC  PH35C Conductive & Non-Conductive Hoses
  RTI High flow fitting hoses PH35NC

A lightweight standard wall crystal
clear yarn reinforced hose. Crimped
ends with high flow fittings. Brass end
fittings ¼”male NPT with one swivel
connection for greater ease of use.

FEATURES
▪ Lightweight, flexible construction
▪ Non conductive
▪ Resistant to many chemicals
▪ High flow crimped ends
▪ Silicone-free
▪ Economical hose for spraying
Note: This hose is non-conductive










  PH35C Provides static-free air to paint gun
  Uniquely different PVC air hose that
prevents static build-up without the
need of a static wire. Crimped ends
with high flow fittings. Brass end fittings
¼”male NPT with one swivel
connection for greater ease of use.

FEATURES
▪ Uniform conductive flexible liner assures contact with fittings for the life of the hose
▪ No wires to break when hose is flexed
▪ Silicone-free Higher transfer efficiency especially
with plastic components like bumpers







  PH35NC








  Blue Modular Piping
  Blue Modular Piping






  Download Product Brochure



  ED-24
  ED24 Reading Technologies, Inc. can solve most problems found within the compressed air industry. One of the most critical items in any air system that is often overlooked is a
reliable drain mechanism on the main reservoir tank. The ED-2-4 drains automatically drain your tank as often as needed to provide water free air downstream. Just another way RTi is revolutionizing the compressed air industry.

SPECIFICATIONS:

• Maximum Pressure: 230 PSI • Maximum Temperature: 120 °F
• ¼” female or ½”male NPT Inlet Port • ¼”NPT Outlet Port (on valve)
• 115V, 60 HZ, single phase • NEMA 4 rating on Valve and Timer
• ¼”NPT Brass Valve body w/ .157” orifice • Supplied with 6’ Power Cord











  FEATURES:
  Adjustable Drain Interval - 0.5 to 45 min.
Adjustable Drain Span - 0.5 to 10 sec.
On/Off Indicator Lights
Ball Valve Strainer - Protects Valve
from Heavy Contaminants.

Stainless Steel Strainer Element -
Easy to Remove and Clean
Mounts to ¼”Male or ½”NPT Female
Drain Lines/Ports, in Any Position.
Test Button - Allows Manual Activation
APPLICATIONS:
Use on any air reservoir tank, air/water separators, air filters, air dryers, or drip legs
whenever condensed water removal is necessary. Reliance on a manually drained system
often leads to water contamination of your critical air driven equipment or machinery.










  Download Product Brochure
