Total Vehicle Technologies Nitrogen Generator Nitro-Flate Machines

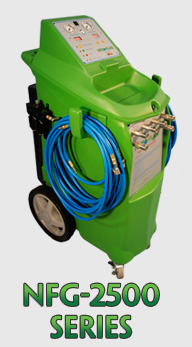

  NFG-2500 SERIES

Full Service for one to six tires with the push of a button. Generates it's own nitrogen using a unique, patent provisioned, PSA system so no need to rent tanks. Just plug into standard shop air, select the desired tire pressure and press Start Service.

Nitro-Flate™ will automatically deflate and fill tires with nitrogen using two purge cycles. When complete a buzzer will sounds indicating the end of service and the on board display shows the percentage of nitrogen in the tires.



  Nitrogen Generator NFG 2500




      Truly portable
◦Can service a vehicle without being connected to power or air supply line.
◦Perfect for quick service when bays are full.
(Must have minimum 120 psi in storage tank)




      Low maintenance
◦Three pre-filters protect sieve towers and an indicator signals filter changes.





  Nitorgen1 Nitrogen 2 Nitrogen 3 Nitorgen 4 Nitorgen 5 Nitorgen 6 Nitorgen 7





  Short service time
◦Less than 10 minutes for most vehicles.
Completely automatic
◦Press a button and walk away. A buzzer indicates end of service
No need for additional N2 tester
◦Percentage of nitrogen in tires is displayed at the end of each service.
Built in low battery indicator
◦(Battery life 90 hr.) Plug into 120 VAC to charge or continue service.
Manual fill feature
◦Allows for top offs or quick manual nitrogen inflation.


Easy 8 Step Operation:

1.Connect shop air to machine. (minimum 100 psi.)
2.Turn on power
3.Press the Power button and the generator will start producing and storing 98.5 - 99.8% nitrogen.
4.Connect Hoses to tires.
5.Select tire pressure and press the start Service button.
6.When the service is finished a buzzer will sound the Service Complete light will illuminate. Press the pause button to stop the buzzer sound.
7.Disconnect all hoses and the service is now complete.










  System Specs
N2 Output 10CFM
N2 Purity 98.5 - 99.8% (94% minimum in tires)
Power Source (either of the two) - Internal  Battery ( 22 hrs. single charge)
- 120/60 Outlet
Temperature Range -15F to 160F
Internal N2 Storage Tank 20 Gallons
Tires Inflated 1-6 (4 hoses included)
Weight 181lbs. w/ 4 hoses
Dimensions 29"D x 23.5"W x 48"H


Easy Maintenance:


Easily performed by technicians - change filters, which are accessible on the outside of the machine, every six months or when indicated. Re-calibrate the sensor every six months with the push of a button. (see manual). Replace 12 V-18Ah-AGM.







    Brochure Front
    Brochure Back

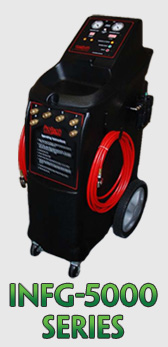

  INFG-5000 SERIES

Truly portable
◦Can service a vehicle without being connected to power or air supply line.
◦Perfect for quick service in a parking when bays are full.

Low maintenance
◦Three pre-filters protect sieve beds and an indicator signals filter changes.



  Nitrogen Generatro INFG





Short service time


◦Average car under 8 mins
◦SUV's in under 11 mins
◦Commercial Trucks w/6 Wheels under 20 mins.
Completely automatic
◦Press a button and walk away. An alarm indicates end of service
No need for additional N2 tester
◦Percentage of nitrogen in tires is displayed at the end of each service.
Built in low battery indicator
◦Plug into 120 VAC to charge or continue service.
Manual fill feature
◦Allows for top offs or quick manual nitrogen inflation.













  System Specs

N2 Output
11.1CFM
N2 Purity 98.5 - 99.8% (95% minimum in tires)
Power Source (any of 3) - Cars battery (cables supplied)
- 120/60 Outlet
Temperature Range -15F to 160F
Internal N2 Reservoir 20 Gallons
Tires Inflated 1-6 (4 hoses included)
Weight 220lbs.
Dimensions 29"D x 19"W x 48"H


Easy 8 Step Operation:

1.Connect shop air to machine.
2.Select a Power Source by switching to Vehicle or Internal.
3.Press the Power button and the machine will start producing and storing 98.5 - 99.8% nitrogen.
4.Connect Hoses to tires.
5.Select tire pressure and press the start Service button.
6.When the service is finished an alarm will sound the Service Complete light will illuminate.
7.Disconnect all hoses and the service is complete.
