Worth Exsel 2000 Pro Bender

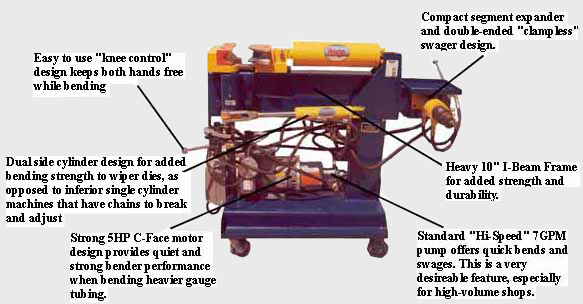

  Tubing bender












  Depth control   bender











  Tubing Bender







The Worth "Exsel" 2000 Pro series bender continues the tradition of excellence that dates back to 1947. Worth is the pioneer of exhaust tube bending equipment and is the first to market a compression tube bender that was specifically designed for exhaust shops. The Exsel series benders are designed with several unique features that make them very durable and user friendly. All Worth benders use an open-loop hydraulic system that keeps the bender cool while operating, especially important when operating long hours at a time. Worth continues to use the original heavy steel frames that were introduced on early machines. Examples of enhancements made over the years include expander design, machine speed, and increased motor horsepower. The heart of the machine is constructed from heavy 10" steel I-beam (not square tubing) braced with 5/8" side plates. The wiper dies are actuated by 2 - independent hydraulic cylinders (no chains to break or adjust). These are just a few of the superior features that make Worth an industry leader.

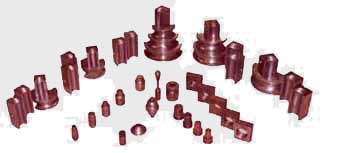

  swagging tools

Swaging Tools

4034 - Quick Connect Slip Adapter
4002 - 1 1/2" Slip Ram Die
4004 - 1 3/4" Slip Ram Die
4035 - 2" Slip Ram / 1 3/4" Male Ball
4036 - 2 1/4" Slip Ram / 2" Male Ball
4037 - 2 1/2" Slip Ram / 2 1/4" Male Ball
4026 - 1 1/2" Hinged Adapter Collar
4027 - 1 3/4" Hinged Adapter Collar
4029 - 2" Hinged Adapter Collar
4030 - 2 1/4" Hinged Adapter Collar
4031 - 2 1/2" Hinged Adapter Collar
4039 - 1 3/4" - 2 1/2" Female Ball
4014 - 45 Degree - 90 Degree Head Pipe Tool









Bending Dies
Bending Dies
Expanding Segments
6015 - 1 1/2" X 3" Radius Die
6038 - 2 1/4" X 5" Radius Die
3003 - 1 1/2" to Arbor Mandrel
6017 - 1 1/2" Wiper Dies (2)
6039 - 2 1/4" Wiper Dies (2)
3005 - 1 1/2" Segment Expander
6018 - 1 1/2" Half Wiper
6040 - 2 1/4" Half Wiper
3006 - 1 3/4" Segment Expander
6023 - 1 3/4" X 3" Radius Die
6042 - 2 1/2" X 5" Radius Die
3007 - 1 7/8" - 2" Segment Expander
6026 - 1 3/4" Wiper Dies (2)
6043 - 2 1/2" Wiper Dies (2)
3008 - 2 1/4" - 2 1/2" Segment Expander
6027 - 1 3/4" Half Wiper Die
6044 - 2 1/2" Half Wiper Die
3010 - Adjustable Expanding Barrel
6032 - 2" X 3" Radius Die

Accessories

Available Options

6033 - 2" X 4" Radius Die
2090 - Operators Manual
2107 - VHS Training Tapes
6034 - 2" X 5" Radius Die
2046 - Power Cord
2080 - 2080 Angle Dial (Data Bending)
6035 - 2" Wiper Dies (2)
2103 - Assorted O" Rings
2100 - Data Card System
6036 - 2" Half Wiper Die
2400 - Auto Depth Control
* 1 7/8" Dies / 2 3/4 Dies
6037 - 2 1/4" X 4" Radius Die
*Custom round Tubing dies starting at 1/2" O.D.










Optional 3" Tooling
Tubing Specifications For Best Results
tools

3D Tooling Package

6047 - 3" X 5" Radius Die
6048 - 3" Wiper Dies (2)
3009 - 3" Segment Expander

Optional 3" Tooling

4022 - 3" Reducer
4013 - 3" Solid Ram Die
4045 - Hinged Adapter Collar
1 1/4" OD to 1 3/4" OD 18 Gauge Min. (.049)
1 7/8" OD to 2 1/8" OD 16 Gauge Min. (.065)
2 1/4" OD to 2 1/2" OD 14 Gauge Min. (.083)
3" OD 13 Gauge Min. (.095)
