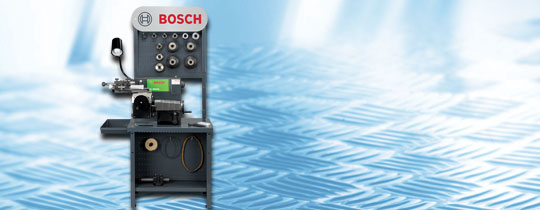

Bosch Brake Lathe BL 8993 Multi-Speed Brake Shop

BL 8993 Bosch Multi-Speed Brake Shop

Model#	BL 8993
Part#	F00E900233
Description	Bosch Multi-Speed Brake Shop (BL 8944L Lathe + Bench + 8010 Adaptor Set)
Rotor Capacity	4″-24″
Max Rotor Width	4.5″
Max Rotor Thickness	2.25″
Drum Capacity	6″-28″
Drum Depth of Cut	6″
Flywheel Capacity	6″-24″
Flywheel Friction Surface Capacity	6″
Max Weight	150 lbs
Spindle Speed	100, 150, 200 RPM
Rotor Feeds Per rRvolution	0.001″-0.010"
Drum Feeds Per Revolution	0.0015"-0.015"
Power	115V 50/60 Hz
Motor	1HP
Warranty	1 year parts, 6 months labor, and qualifies for the Bosch Wheel Service Promise!!

Key Features

Value	One Stop Shopping	Includes BL 8922L Lathe + Bench + 8010 standard adaptor group accessories
Value	Includes Professional Setup Free of Charge	Includes setup, installation, and training by a certified Bosch professional
Value	Includes Shipping Costs Free of Charge	Includes setup, installation, and training by a certified Bosch professional
Quality	Superior WarrantyPlusBosch Service Promise	Best in class warranty (1 year parts, 6 months labor), Plus the service promise commits to getting your equipment up and running within 48hrs or Bosch extends your warranty.
Performance	Multi-Speed Arbor Options	Three available arbor speeds: 100, 150, and 200 RPM along with adjustable rotor and drum feed speeds provides extreme versatility and flexibility
Performance	Positive Rake One Pass Tooling	Cut more material in a single pass, (up to 0.50”). Meets OEM finish quality specs on a single pass without any extra finishing steps needed.
Performance	Best in Class Muscle Mass	470 lb. solid metal casting that eats up vibration and allows for a smoother cut than the competition.
Performance	External Motor Assembly Mount	The external motor mount design cuts down on vibrations that are otherwise transmitted to the cutting surface giving you a smoother cut than the competition.
Performance	Huge Dovetail Way and Gibb Design	True machine shop quality design that fully supports the tool motion at all times. This more rigid tool support construction eliminates vibration and allows for smoother cuts than the competition.
Performance	Tapered Roller Bearing Arbor Supports	Bosch brake lathes utilize tapered roller bearings instead of straight bushings to support the spinning arbor. Tapered bearings tightly surround the arbor to minimize slop and allow the cutting heads to cut deeper and smoother than the competition. Bushing designs are inherently flawed as they require gaps to allow for arbor motion.

Recommended Accessories

Brake Lathe Accessories Bosch

438020

433796

F00E901139

8040

Brake lathe dust containment unit (Bench not included)

10 Pack of replacement carbide inserts with screws

#8050 Premium three jaw chuck adaptor group

Platinum adapter group for passenger cars, composite rotors, and light trucks through 1 ton trucks

8030

8020

F00E900847

Gold adapter group for passenger cars and light trucks through 1/2 ton trucks

Silver adapter group for passenger cars and light trucks

Three jaw lite chuck kit (single sided chuck w/ 1 plate)

Brochure

Specs Sheet

Bosch Brake Lathes...Faster. Better. Stronger, their revolutionary brake lathes are designed with supreme accuracy to make operation quicker and safer. Bosch models incluce High Performance and Heavy Duty Brake Lathe, machining Centers.
