Cemb K22 Motorcycle Wheel Balancer







Features and Benefits




Motorcyle Wheel Balancer

The K22' shaft is fixed so that the wheel rotates freely on its own bearings. This simulates exactly the assembly of the wheel on the motorbike and eliminates all the assembly inaccuracies which are inevitable with traditional balancing machines for car wheels where the adapter is put in rotation with the wheel.

  • Universal space saving wheel balancer with excellent technical specifications combining a sturdy structure with attractive and modern design
  • K22 balances bearing type wheels, scooters wheels (hand spin), and single sided swing arm (with optional AGF adaptor set)
  • Automatic Distance & Diameter Entry (2D)
  • Self-Diagnosis and Self-Calibration
  • Menus for quick selection of the following:
  • ounces to grams
  • inches to millimeters
  • unbalanced thresholds 0.1 or 0.25 ounces (1 or 5g)
  • Optimization program for compensation of rim and tire unbalance
  • "Static" and "Dynamic" program
  • 12-Compartment Weight Tray + Adaptors compartment














  Technical Specifications

  • Power Supply

    110VAC, 50/60 Hz, 1 ph

    Balancing Speed

    < 80 rpm

    Balancing Accuracy

    < 0.1 oz (< 1 g)

    Average Cycle Time

    5 seconds

    Rim Diameter Capacity

    10" - 30" (265 - 765 mm)

    Rim Width Capacity

    1.5" - 20" (40 - 510 mm)

    Max. Wheel Weight

    66 lbs (30 kg)

    Max. Tire Diameter

    28" (711 mm))

    Operating Temperature

    32 - 113°F (0 - 45°C)

    Shaft Size

    15 mm

    Gross Ship. Weight

    220 lbs (100 Kg)














  Documents:

  User Manual

  Specs

  Brochure

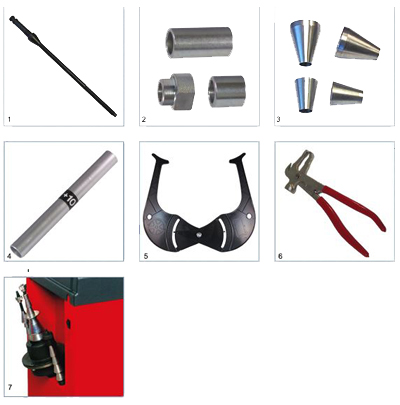

  Standard Accessories



1. SHAFT
15mm threaded shaft

2. SHAFT NUT
Shaft nut and spacers

3. CONES
4 cones covering hole sizes 15mm to 35mm

4. +10 SPACER

5. CALIPER
Rim width gauge for measuring wheel width

6. WEIGHT PLIERS
Can be used as balanced weight hammer, cutting pliers for trimming wheel weights, and puller to remove the old wheel weights

7. STORAGE
Lateral compartment for adaptors storage

K22 Standard Accessories
















  Optional Accessories



1. HARLEY D. EXT.
Harley Davidson shaft extension

2.KAWASAKI EXT.
Kawasaki - Suzuki shaft extension

3.BUSHINGS
Complete Kit of Centering Bushings

4. HARLEY D. KIT
Solid shaft for Harley Davidson. Fits 3/4" and 1" axle.

5. HONDA KIT
12mm shaft and cones, used for Honda XR/CRF50 Dirt Bike

6. AGF KIT
AGF kit for single arm type (flange) wheels

K22 Optional Accessories
