Tuxedo Wheel
Balancer |
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
Wheel Balancer |
|
|
| |
|
|
|
|
| |
WB-CB66-VE Wheel Balancer |
Features
- User Friendly Operation - LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.
- Large Rim Diameter Balancing - able to balance up to 28” Rim diameter & 44” overall Wheel Diameter.
- Multi-Mode Vehicle Balancing - standard with SUV, Car & Motorcycle balancing modes.
- Low-RPM Operation - at 140 RPM, the balancer’s life is further extended for sensitive electronics & moving components, all while providing highly accurate wheel balancing.
- Ease-Of-Use - with manual measurement input for distance & diameter with 5 ALU Standard modes and 2 ALU Smart modes.
- Exclusive Laser Indicator - lights up automatically at the unbalance weight position under ALUS mode in the 6 o’clock wheel position.
- Integrated Measurement Acquisition Wand - allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine.
- Light Indicator - illuminates inside of wheel automatically at the unbalanced weight position, for improved wheel weight applications.
- Foot Pedal Braking System - conveniently secures the wheel in the unbalanced position to accurately apply balance wheel weights.
- Extra Long, Heavy Duty Balancing Shaft - the 12" long, 40mm diameter balancing shaft accommodates wide range of wheels, including unique aftermarket wheels of different sizes & shapes.
- Speed-Nut Mounting - the Speed-Nut allows for quick & efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.
- Multi Pocket Wheel Weight Shelf - 14 articulated pockets, over 1.5" deep, allowing plenty of storage for weights & tooling.
- Large Wheel Shroud - the large 38” wheel hood prevents debris from flying off the tire while in use.
- Power Saving Mode - automatically puts machine in stand-by mode after 5 minutes of non-usage.
|
|
| |
 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
| |
|
Specifications |
CB66-VE |
Data Entry |
Keypad |
Max Wheel Diameter |
44" |
Rim Width |
1.5” - 20” |
Rim Diameter |
8” - 28” |
Wheel Weight Capacity |
150 lbs. |
Accuracy |
1 gram |
Balancing Time |
5 to 7 sec. |
RPM |
140 |
Power Supply |
110V 60hz |
Shipping Weight |
352 lbs. |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|

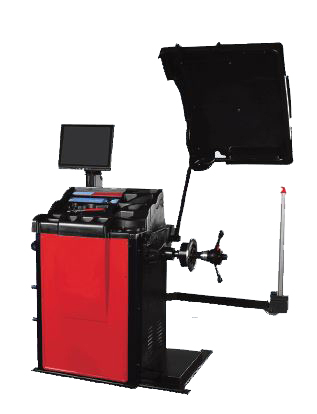

Model Number: WB-1200 |
LCD Wheel Balancer with hood |
|
| |
 |
|
|
|
| |
Features:
- Easy to read LCD Monitor
- Automatic measuring
- Audio-visual operation process
- aids in precision for fewer mistakes
- S elf-check function
- helps diagnose problems
- Software updated via USB port
- Operates in 7 different languages
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
| |
|
| SPECIFICATIONS |
WB-1200 |
| Max wheel diameter |
45 ¼" |
| Max wheel weight |
165 lb |
| Rim diameter |
10-26" |
| Rim width accuracy |
1.5-20" |
| Rotating speed |
200 RPM |
| Shipping Weight |
454 lb |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
 |

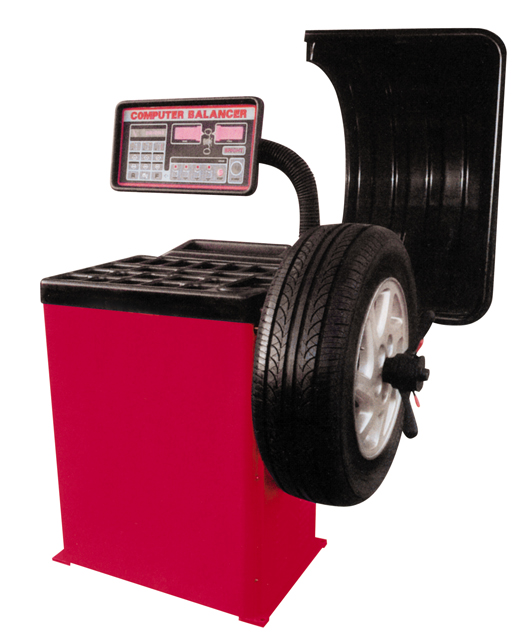

Model Number: WB-1060 |
|
|
| |
|
|
|
| |
- Self calibrating
- Weight storage
- Pegs for accessories
- 8" long shaft with 35mm diameter
- Three centering cones
- ST, AL1, AL2, AL3, AL4 balancing methods
- Hood, speed nut, hammer and caliper standard
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
| |
Documents: |
| Specifications |
|
| Model Number |
WB-1060 |
| Data entry |
Keypad |
| Tire diameter |
40" |
| Tire width |
2"-20" |
| Rim diameter |
10"-24" |
| Wheel weight |
150 lbs |
| Accuracy |
1 gram |
| Power |
110vac |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
Wheel Balancer |
|
|
|
| |
|
|
|
|
| |
 |
Model Number: WB-1030 |
|
|
| |
|
|
|
| |
- Self calibrating
- Weight storage
- Pegs for accessories
- 8" long shaft with 35mm diameter
- Three centering cones
- ST, AL1, AL2, AL3, AL4 balancing methods
- Speed nut, hammer and caliper standard
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
| |
Manual |
| Specifications: |
|
| Model Number |
WB-1030 |
| Data entry |
Keypad |
| Tire diameter |
35" |
| Tire width |
1.5"-20" |
| Rim diameter |
10"-24" |
| Wheel weight |
143 lbs |
| Accuracy |
1 gram |
| Power |
110vac |
|
|
| |
Specs Sheet |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
Options |
|
|
|
| |
|
|
|
|
| |
 |
 |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
|
|
|
| |
We offer the best value in the industry on these wheel balancers— These are top performing balancers at an affordable price. They have all the features of the big guys. Standard features include: self-calibrating, dynamic, static and alloy capability, and a speed nut. The quick keypad data
entry system makes tire balancing fast and efficient.
|
|
| |
|
| |
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
Wheel Balancer |
Model Number: WB-953 |
|
|
| |
|
|
|
|
| |
|
Features:
✦ Self calibrating
✦ Self diagnosis
✦ Optimization program
✦ Static balancing
✦ alu-s balancing for light alloy rims
✦ Split function (hidden weights)
✦ Multiple operator program
✦ Three centering cones
✦ Weight storage
✦ Pegs for accessories
✦ Hood, hammer, speed nut and caliper standard
✦ Optional motorcycle adapter is available |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Manual |
Specifications: |
|
|
| |
Specs Sheet |
Model Number |
WB-953 |
|
| |
|
Data entry |
Keypad |
|
| |
|
Tire diameter |
35" |
|
| |
|
Tire width |
1 . 2/.5" - 20" |
|
| |
|
Rim diameter |
10"-24" |
|
| |
|
Wheel weight |
143 lbs |
|
| |
|
Accuracy |
1 gram |
|
| |
|
Power |
110vac |
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
High Performance Wheel
Balancer |
|
|
| |
|
|
|
|
| |
 |
Model Number: WB-1090 |
|
|
| |
|
|
|
| |
- Large easy to read screen
- Self calibrating
- Weight storage
- Pegs for accessories
- 8" long shaft with 35mm diameter
- Three centering cones
- ST, AL1, AL2, AL3, AL4 balancing methods
- Hood, speed nut, hammer and caliper standard
- Also available with automatic data entry (order model 1120)
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
| |
|
| Specifications: |
|
| Model Number |
WB-1090 |
| Data entry |
Keypad |
| Tire diameter |
39.4" |
| Tire width |
1.5"-16" |
| Rim diameter |
10"-24" |
| Wheel weight |
150 lbs |
| Accuracy |
+/- 2 gram |
| Power |
110vac |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
| |
|
|
|
|
|
|
|
|
| |

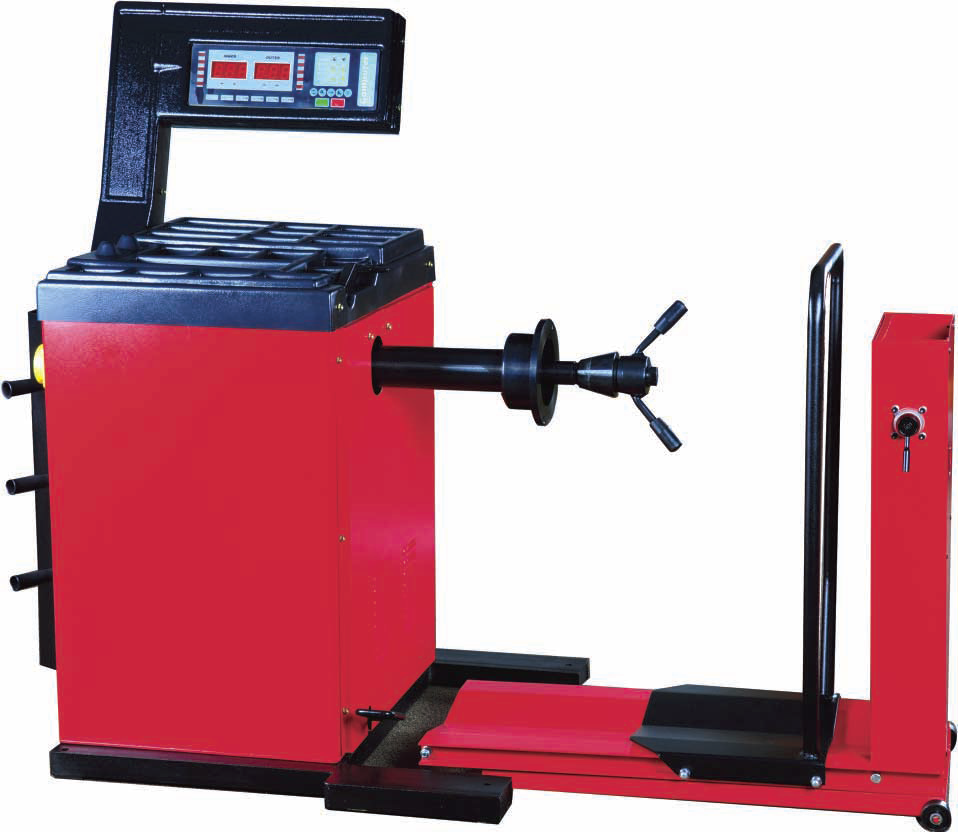

Heavy
Duty Truck Wheel Balancer |
|
|
| |
|
|
|
|
| |
 |
Model Number: WB-448 |
|
|
| |
|
|
|
| |
Features:
- Designed for balancing heavy truck wheels up to 298 lbs.
- Back-saving pneumatic wheel lift
- Self-calibrating and self-diagnosis
- ST, AL1, AL2, AL3, AL4 balancing methods
- Capable of balancing a full range of wheels. Car and truck cones standard
- Foot brake for manual stop
- Weight storage
- Pegs for accessories
- Tool box standard
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
| |
Manual |
A high performance machine, this heavy-duty Truck Wheel Balancer
with standard pneumatic wheel lift balances wheels up to 298 lbs. quickly
and accurately. A great addition to any truck maintenance shop. |
|
| |
|
|
| |
|
|
| |
|
|
|
|
| |
|
| Specifications: |
|
| Model Number |
WB-448 |
| Max wheel weight |
298 lbs. |
| Balancing speed |
200 rpm |
| rim width |
1.5"-20" |
| Rim diameter |
10"-24" |
| Working pressure |
72 - 116 psi |
| Power |
220 vac |
| Shipping Weight |
595 lbs.
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| |
