Flow Dynamics Fluid Extacting Equipment




  EVAC-U-MAX Multi-Fluid Extractor

  evac u max extractro pendant




    Fingertip control pendant
allows faster operation

  FEATURES
  • Extracts engine oil, PSF, ATF, differential fluid,
    manual transmission fluid & transfer case fluid.
  • Fills engine oil, PSF, ATF, differential fluid,
    manual transmission fluid & transfer case fluid.
  • Large 6.5 GPM gear pump allows for fast extraction
  • Triple gear pump design— One dedicated to extraction,
    one to filling, and one to draining the waste tank.
    No cross-contamination.
  • Automatic shutoff when waste fluid tank is full
  • LED indicators
  • Onboard adapter organizer
  • 4 casters for easy mobility
  • Easy to operate
  • Includes standard adapter set
  • Magnetic filter
EVAC-U-MAX











  SPECIFICATIONS

Power:  12V
6.5 GPM 12V D/C Gear Pump
Two 3.6 GPM 12V D/C Gear Pumps
Dimensions: 39”H x 17”W x 26”D
New Fluid Tank Capacity: 5 Quarts
Waste Fluid Tank Capacity: 20 Quarts
Weight: 90 lbs.
EVAC-U-MAX-AdapterTray

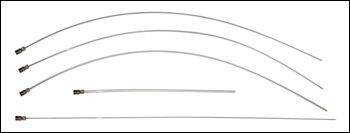

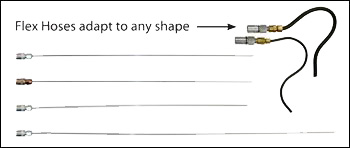

  EVAC-U-MAX Standard Adapters EVAC-U-MAX Optional Adapters




  Standard Adapters Optional Adapters

  Documents

  Quick Start Guide

  Flyer
