Launch Products 2 Post Lifts |
|
|
|
|
| |
|
|
|
Multi Purpose full asymmetric lift that is height and width adjustable and may be installed in a standard or rotated column configuration to accommodate the smallest Cars to the largest SUVs’ and Trucks.
|
|
| |
TLT240 Series |
|
| |
|
|
| |
 |
Features & Benefits
- Rubber Door Guards - Provides added security against door damage.
- Hose Guards - Protects hydraulic hoses from damage.
- Dual Point Lock Release - Allows technicians to disengage both column locks independently.
- Heavy-Duty Arm Restraint System - Oversize rugged steel gears, pins, and springs for trouble free
operation.
- Double Telescoping Screw Pads - Used with rubber pads offering 2.5” adjustment for complete
vehicle coverage.
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
| |
|
| Specifications |
TLT 240SB |
TLT 240SC |
| Capacity |
9,000 lbs |
9,000 lbs |
| Height Overall |
113" |
151" |
| Width Overall w/Power Unit |
133" |
Symmetric: 134" Asymmetric: 140" |
| Max. Lift Height |
73" |
73" |
| Width Between Columns |
108" |
108" |
| Min. Pad Height |
4" |
4" |
| Asymmetric/Symmetric |
Symmetric |
Symmetric/Asymmetric |
| Drive Thru Clearance |
Symmetric: 98" |
Symmetric: 98" Asymmetric: 95" |
| Lifting Speed |
50 Seconds |
50 Seconds |
| Clear Floor/Floor Plate |
Clear Floor |
Clear Floor |
| Arm Reach - min/max |
31.5" - 47" |
31.5" - 47" |
| Narrow Bay Setting |
N/A |
Deduct 5.9" |
| Max Load Per Arm |
2,250 lbs |
2,250 lbs |
| Cable Diameter |
3/8" |
3/8" |
| Column Size |
11.34 x 7.5" |
11.34 x 7.5" |
| Column Steel Thickness |
6mm |
6mm |
| Carriage Steel Thickness |
6mm |
6mm |
| Arm Steel Thickness |
6mm, 8mm |
6mm, 8mm |
| Ship Weight |
1,380 lbs |
1,500 lbs |
| Ship Dimensions |
113"L x 21-1/2"W X 43"H |
110"L x 24"W X 48"H |
| Power |
208-230 Volt/60hz./Single Phase |
208-230 Volt/60hz./Single Phase |
|
|
| |
 |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
Documents: |
|
| |
|
|
| |
Flyer |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
TLT210-XT |
|
| |
|
|
|
| |
 |
Features & Benefits
- Adjustable Column Height - Provides an extra 6” of height adjustment for ease of installation with various ceiling heights.
- Adjustable Column Width - Provides extra 6” of width adjustment for narrow service bays to custom fit your shop.
- Rubber Door Guards - Provides added security against door damage.
- Outer Hose Guards - Protects hydraulic hoses from damage.
- Stackable Foot Pad Extensions - Extra tall applications are no problem with the two 6” tall and two 3” short extensions.
- Single Point Lock Release - Allows technicians to disengage both column locks simultaneously.
- Heavy-Duty Arm Restraint System - Oversize rugged steel gears, pins, and springs for trouble free operation.
- Double Telescoping Screw Pads - Used with or without rubber pads offering 6.5” adjustment for complete vehicle coverage.
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
Documents: |
|
|
| |
Flyer |
| Speci cations |
TLT210-XT Standard |
TLT210-XT Rotated |
| A. Maximum Lifting Height |
76.4" (1940mm) |
76.4" (1940mm) |
| B. Minimum Column Height |
143"(3634mm) |
143"(3634mm) |
| C. Cylinder Full Height |
145.2" (3688mm) |
145.2" (3688mm) |
| D. Total width |
136.6" (3470mm) |
137.9" (3502mm) |
| E. Drive-Thru Clearance |
98.4" (2500mm) |
92" (2338mm) |
| F. Floor to Overhead Switch |
140" (3556mm) |
140" (3556mm) |
| G. Front Arm Reach (min / max) |
23.6" (600mm) / 43.5" (1105mm) |
23.6" (600mm) / 43.5" (1105mm) |
| H. Rear Arm Reach (min / max) |
38.6" (980mm) / 61.8" (1570mm) |
38.6" (980mm) / 61.8" (1570mm) |
| I. Screw Pad Height |
4" (101mm) to 7.5" (190mm) |
4" (101mm) to 7.5" (190mm) |
| J. Inside Column Width |
110.2" (2800mm) |
101.9" (2588mm) |
| Motor |
2 HP |
2 HP |
| Voltage |
208-230 Volt/60hz./Single Phase |
208-230 Volt/60hz./Single Phase |
| Rise Speed |
54 Seconds |
54 Seconds |
| Max. Load Per Arm |
2500 lbs (1134 Kilos) |
2500 lbs (1134 Kilos) |
| Min. Ceiling Height Required |
143.5" (3644mm) |
143.5" (3644mm) |
| Narrow Bay Setting |
Deduct 5.9" (149mm) |
Deduct 5.9" (149mm) |
| Maximum Column Height |
149" (3874mm) |
149" (3874mm) |
| Capacity |
10,000lbs |
10,000lbs |
| Shipping Weight |
1,570lbs |
1,570lbs |
| Shipping Dimensions |
110"Lx24"Wx48"H |
110"Lx24"Wx48"H |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
|
|
| |
TLT211-AS |
LAUNCH 11,000 lb 2 post lift |
|
| |
|
|
|
| |
 |

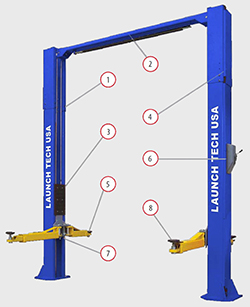

1) Adjustable Column Height-Provides an extra 6" of height adjustment for ease of installation with various ceiling heights.
2)Adjustable Column Width-Provides extra 6" of width adjustment for narrow service bays to custom fit your shop
0,000 lb Models only)
3)Rubber door guards-Provides added security against door damage.
4) Outer Hose Guards-Protects hydraulic hoses from damage.
5)Stackable Foot Pads Extensions-Extra tall applications are no problem with the two 6" tall and two 3" short extensions.
6) Single Point Lock Release-Allows technicians to disengage both column locks simultaneously.
7) Heavy-Duty Arm Restraint System-Oversized rugged steel gears,pins,and springs for trouble free operation.
8)Double Telescoping Screw Pads-Used with or without rubber pads offering 6.5" adjustment for complete vehicle coverage. |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
| |
Documents:
|
|
| |
Flyer |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
Specifications
Lifting capacity: 11,000 lbs
Maximum Lifting Height-75.6"
Minimum Column Height-143"
Cylinder Full Height-145.4"
Total Width-137.8"
Drive-Thru Clearance-96"
Floor To Overhead Switch-140"
Front Arm Reach(min/max)-23.6" to 39.4"
Rear Arm Reach(min/max)-38.6" to 61.8"
Screw Pad Height-4.3" to 7.8"
Inside Column Width-108"
Motor: 2 HP
Voltage-208-230 volt / 60hz / single phase
Rise Speed-54 sec
Maximum Load Per Arm-2750 lbs
Minimum Ceiling Height Required-143.5"
Narrow Bay Setting-Non Adjustable
Maximum Column Height-149" |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
