Super Duty & Heavy Duty Shop Press


  Free Shipping in the USA only!!! Free Shipping Free Shipping is only for Heavy Duty Shop Equipment




  Model #: 834   SHOP PRESS 35 TON





·                  Automotive and heavy-duty use

·                  Two-speed hand pump provides faster travel to load while the air/hydraulic (with load protection) allows for effortless operation

·                  Seven bed adjustments

·                  Frame-mounted hydraulic pressure gauge












  Download Product Service Drawing


  Model #: 837   SHOP PRESS 50 TON





·         Heavy-Duty vehicle and industrial use

·         Winch-operated press bed with seven adjustment levels

·         Comes with 2 pressing plates

·         Two-speed hand pump provides faster travel to load while air/hydraulic pump (with overload protection) provides effortless operation

·         Frame-mounted hydraulic pressure gauge











  Download Product Sell Sheet

  Download Product Service Drawing



  SUPER DUTY SHOP PRESSES

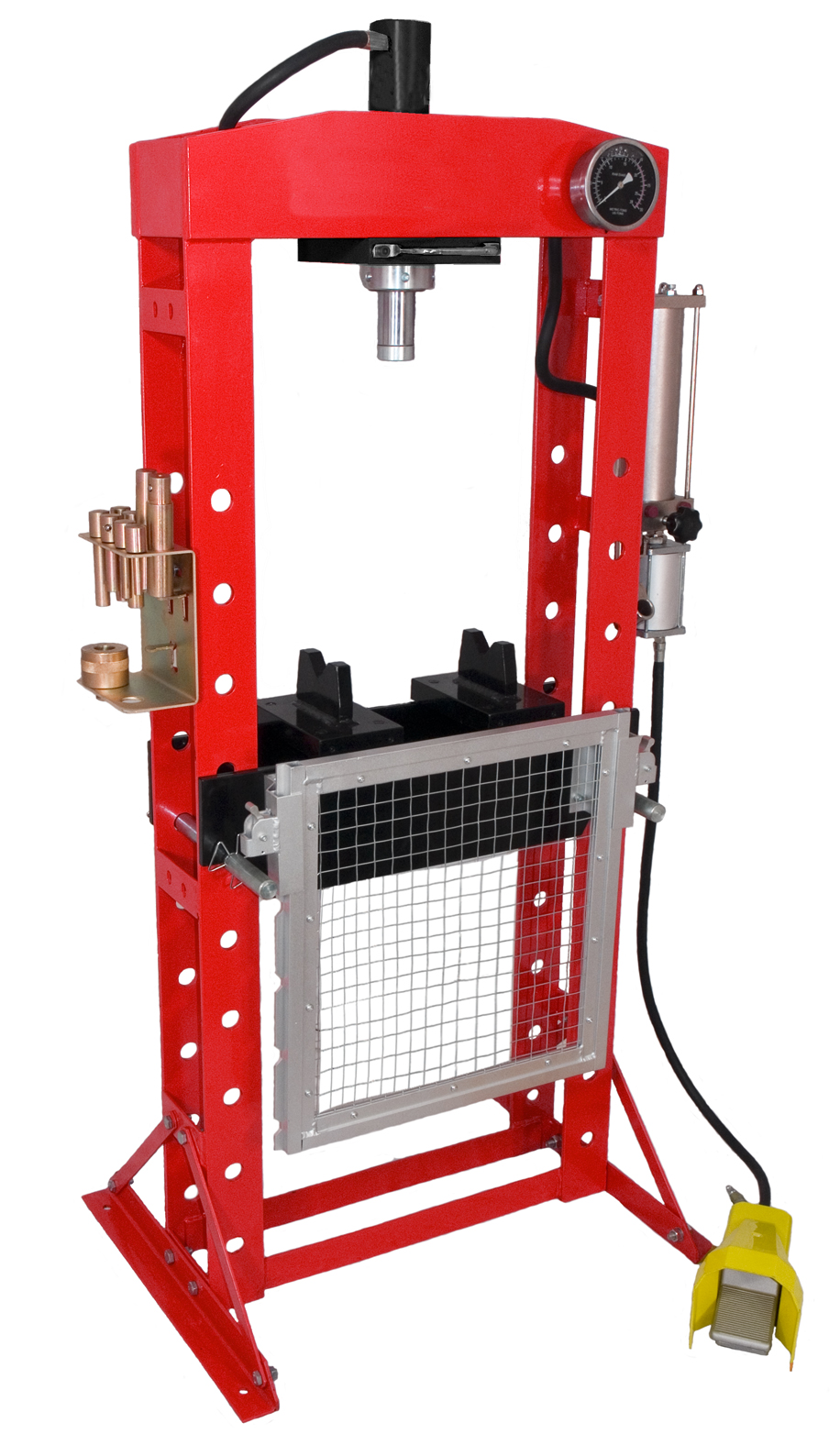

  Model #: 850ASD   20 TON SUPER DUTY SHOP PRESS







  • Shatter resistant polycarbonate protector shield provides maximum protection against shrapnel and other debris
  • Welded construction for exceptional strength and durability
  • Includes 2 pc press plate set and 10 pc pin and bearing press adapter set
  • Dual air motor operation for faster pressing process
  • Glycerin filled gauge accurately shows pressing force
  • 7 position bed height configuration for ultimate operator flexibility
  • Lateral head adjuster provides smooth side to side movement of the press head
  • Overload protection adds operator safety and prevents damage from over pressurizing


















  Download Product Sell Sheet



Specifications









Ram Stroke

Capacity

Overall Dim.

Bed Depth

Bed Width

Throat Depth

Throat Width

Ship Weight

7.5"

20 Tons

35" W x 64" H

7"

19.25"

5.75"

10.75"

282 lbs.

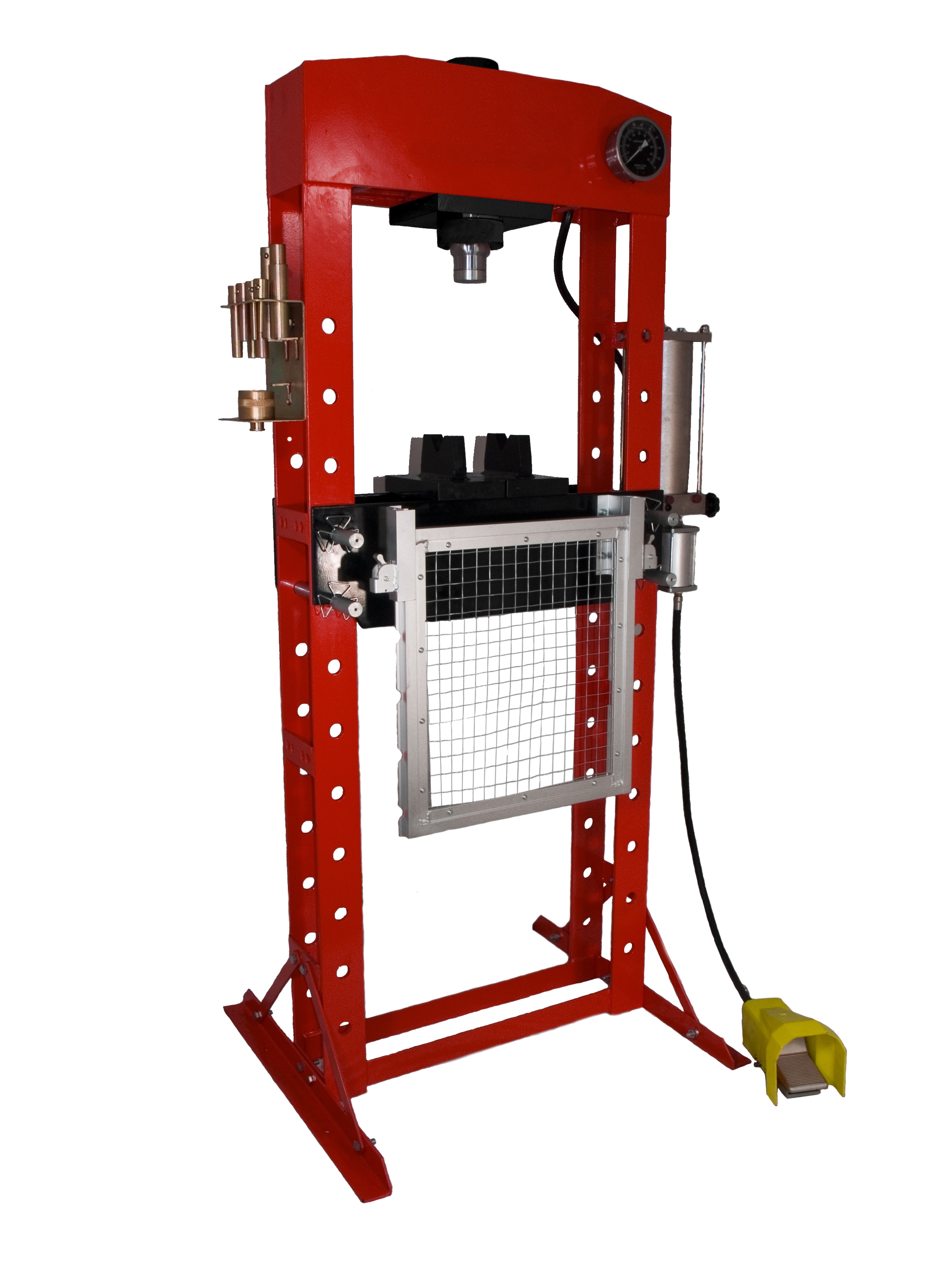

  Model #: 852ASD   30 TON SUPER DUTY SHOP PRESS







  • Shatter resistant polycarbonate protector shield provides maximum protection against shrapnel and other debris
  • Welded construction for exceptional strength and durability
  • Includes 2 pc press plate set and 10 pc pin and bearing press adapter set
  • Dual air motor operation for faster pressing process
  • Glycerin filled gauge accurately shows pressing force
  • 7 position bed height configuration for ultimate operator flexibility
  • Lateral head adjuster provides smooth side to side movement of the press head
  • Overload protection adds operator safety and prevents damage from over pressurizing












  Download Product Sell Sheet


  Model #: 854ASD   50 TON SUPER DUTY SHOP PRESS




  • Shatter resistant polycarbonate protector shield provides maximum protection against shrapnel and other debris
  • Welded construction for exceptional strength and durability
  • Includes 2 pc press plate set and 10 pc pin and bearing press adapter set
  • Dual air motor operation for faster pressing process
  • Glycerin filled gauge accurately shows pressing force
  • 7 position bed height configuration for ultimate operator flexibility
  • Heavy duty cable winch system provides effortless bed adjustment
  • Lateral head adjuster provides smooth side to side movement of the press head
  • Overload protection adds operator safety and prevents damage from over pressurizing














  Download Product Sell Sheet

  Model #: 856ASD   75 TON SUPER DUTY SHOP PRESS



  • Shatter resistant polycarbonate protector shield provides maximum protection against shrapnel and other debris
  • Welded construction for exceptional strength and durability
  • Includes 2 pc press plate set and 10 pc pin and bearing press adapter set
  • Dual air motor operation for faster pressing process
  • Glycerin filled gauge accurately shows pressing force
  • 7 position bed height configuration for ultimate operator flexibility
  • Heavy duty cable winch system provides effortless bed adjustment
  • Lateral head adjuster provides smooth side to side movement of the press head
  • Overload protection adds operator safety and prevents damage from over pressurizing
















  Download Product Sell Sheet

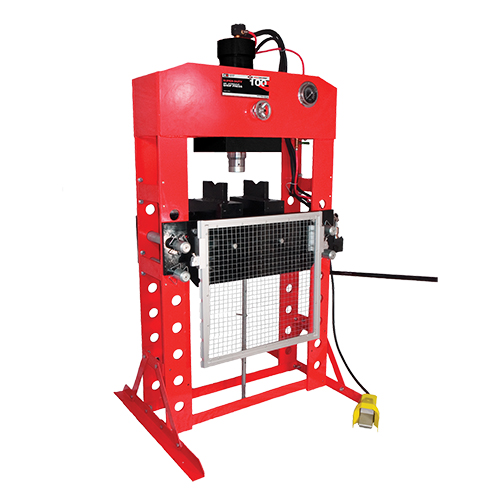

  Model #: 859ASD   TON SUPER DUTY SHOP




  • Shatter resistant polycarbonate protector shield provides maximum protection against shrapnel and other debris
  • Welded construction for exceptional strength and durability
  • Includes 2 pc press plate set and 10 pc pin and bearing press adapter set
  • Dual air motor operation for faster pressing process
  • Glycerin filled gauge accurately shows pressing force
  • 7 position bed height configuration for ultimate operator flexibility
  • Heavy duty cable winch system provides effortless bed adjustment
  • Lateral head adjuster provides smooth side to side movement of the press head
  • Overload protection adds operator safety and prevents damage from over pressurizing






















  Download Product Sell Sheet

  Download Product Service Drawing
