Heavy Duty Shop Equipment Air Hydraulic Axle |
|||||||||||||||||||||||||
Free Shipping in the USA only!!! |
|
Free Shipping is only for Heavy Duty Shop Equipment | |||||||||||||||||||||||
Model: 545SD | 30 / 15 TON 2 STAGE AIR / HYDRAULIC AXLE JACK | ||||||||||||||||||||||||
· The extra light weight and portability makes this the ideal service jack for Service Vehicles · 2 Stages and lifting capacities of 30 and 15 Ton make this a very versatile jack. · The extra long removable handle and rugged rear wheels make for easy positioning in hard to reach places. · Air assisted lowering speeds up ram retraction · Comes with 2 extensions (75mm/3" + 45 mm/1.75") and saddle adapter · Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under the harshest conditions · Low height makes this one of the lowest operating heavy jacks on the market. · Ideally suited for drop axles and other low clearance jobs. |
|||||||||||||||||||||||||
Download Product Sell Sheet | |||||||||||||||||||||||||
Download Product Service Drawing | |||||||||||||||||||||||||
|
|||||||||||||||||||||||||
Model: 546SD | 25 / 10 TON 2 STAGE AIR / HYDRAULIC AXLE JACK | ||||||||||||||||||||||||
· SUPER HEAVY DUTY, 2 Stage 25 Ton and 10 Ton built tough for the rigors of the Heavy Duty Trucking, Agricultural and Fleet business · The piston head seal design is borrowed from Industrial technology providing a superior low and high pressure seal, giving this jack a much better hold under severe load conditions · The extra long 138cm (54”) handle can be locked in 3 positions for easy positioning of this jack in hard to reach places. · Integral Descent Metering maintains a controlled and safe lowering of the load · Single piece base construction provides superior strength for increased load stability · Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring · Air assisted lowering speeds up ram retraction · Built in overload safety valve prevents damage to unit due to excessive load · Comes with 2 extensions (75mm/3” + 45 mm1.75”) and saddle adapter · Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under even the harshest conditions |
|||||||||||||||||||||||||
Download Product Sell Sheet | |||||||||||||||||||||||||
Download Product Service Drawing | |||||||||||||||||||||||||
|
|||||||||||||||||||||||||
Model: 547SD | 50 / 25 TON 2 STAGE AIR / HYDRAULIC AXLE JACK | ||||||||||||||||||||||||
· SUPER HEAVY DUTY, 2 Stage 50 Ton and 25 Ton built tough for the rigors of the Heavy Duty• Trucking, Agricultural and Fleet business · The piston head seal design is borrowed from Industrial technology providing a superior low and high pressure seal, giving this jack a much better hold under severe load conditions · The extra long 138cm (54”) handle can be locked in 3 positions for easy positioning of this jack in hard to reach places. · Integral Descent Metering maintains a controlled and safe lowering of the load · Single piece base construction provides superior strength for increased load stability · Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring · Air assisted lowering speeds up ram retraction · Built in overload safety valve prevents damage to unit due to excessive load · Comes with 2 extensions (75mm/3” + 45 mm1.75”) and saddle adapter |
|||||||||||||||||||||||||
Download Product Sell Sheet | |||||||||||||||||||||||||
Download Product Service Drawing | |||||||||||||||||||||||||
|
|
||||||||||||||||||||||||
Model #: 548SD | 60 / 40 / 20 TON 3 STAGE AIR / HYDRAULIC AXLE JACK | ||||||||||||||||||||||||
· This SUPER HEAVY DUTY, 3 Stage 60/40/20 Ton Air Hydraulic Jack covers a wide variety of demands from the Heavy Duty Trucking, Agricultural, Fleet, Construction and Military sectors · The piston head seal design is borrowed from Industrial technology providing a superior low and high pressure seal, giving this jack a much better hold under severe load conditions · The extra long 138cm (54”) handle can be locked in 3 positions for easy positioning of this jack in hard to reach places. · Integral Descent Metering maintains a controlled and safe lowering of the load · Single piece base construction provides superior strength for increased load stability · Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring · Air assisted lowering speeds up ram retraction · Built in overload safety valve prevents damage to unit due to excessive load · Comes with 2 extensions (75mm/3” + 45 mm1.75”) and saddle adapter · Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under even the harshest conditions |
|||||||||||||||||||||||||
Download Product Sell Sheet | |||||||||||||||||||||||||
Download Product Service Drawing | |||||||||||||||||||||||||
|
|||||||||||||||||||||||||

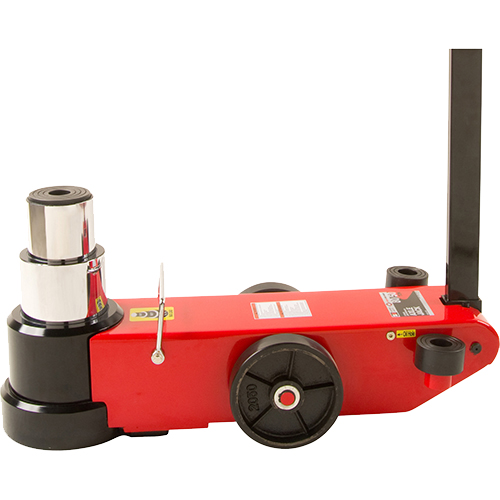

Model #: 549SD | 80 / 50 TON 2 STAGE AIR / HYDRAULIC AXLE JACK | ||||||||||||||||||||||||
· There isn’t much that you won’t be able to lift with this SUPER DUTY 2 Stage Air Hydraulic Jack, Heavy Duty Trucking, Agricultural, Construction, Military, even Aircraft - this does it all! · The piston head seal design is borrowed from Industrial technology providing a superior low and high pressure seal, giving this jack a much better hold under severe load conditions · The extra long 138cm (54”) handle can be locked in 3 positions for easy positioning of this jack in hard to reach places. · Integral Descent Metering maintains a controlled and safe lowering of the load · Single piece base construction provides superior strength for increased load stability · Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring · Air assisted lowering speeds up ram retraction · Built in overload safety valve prevents damage to unit due to excessive load · Comes with 2 extensions (75mm/3” + 45 mm1.75”) and saddle adapter · Units are tested to -13F(-25C) and +113F(+45C) as well as off center loading to ensure a long life under even the harshest conditions |
|||||||||||||||||||||||||
Download Product Sell Sheet | |||||||||||||||||||||||||
Download Product Service Drawing | |||||||||||||||||||||||||
|
|||||||||||||||||||||||||
